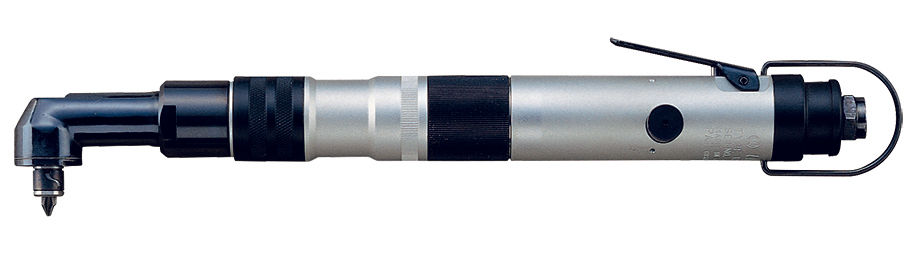

US-LT40B-05C | Angle Head Air Screwdriver, 20 - 49.5 in lbs, 1/4 in. hex drive
Overview
URYU Angle Head Air Screwdriver, 20 - 49.5 in lbs, 1/4 in. hex drive
Angle Head Air Screwdriver, 20 - 49.5 in lbs, 1/4 in. hex drive, model# US-LT40B-05C by URYU; available to order from Flexible Assembly Systems. Do you see this Air Screwdriver available elsewhere for a lower price? Contact customer service on price matching!
US-LT40B-05C by URYU
Features:
- Precise repeatability improves quality
- Minimal wear on internal parts for longer life
- Quick shut off for minimum torque reaction
- Speed choice for flexibility
- Easy external torque adjustment
- Midrange air motor provides high speed during entire
- Ideal for industrial torque control applications
Features & Benefits
- Precise repeatability improves quality
- Minimal wear on internal parts
- Ideal for industrial torque control applications
- Quick shut off for minimum torque reaction
Technical Specifications
SKU: US-LT40B-05C-aimco
SKU
US-LT40B-05C
Model
US-LT40B-05C
Air Inlet Thread N.P.T. - in
1/4
Air Usage - ft3/min
10.5
Angle Head Height - mm
36
Center To Outside - in
1.5
Center to Outside - mm
38.5
Free Speed - rpm
500
Hex Drive - in
1/4
Model
US-LT40-05C
Noise Level - dB(A)
75
Overall Length (approx) - in
13
Overall Length (approx) - mm
322
Torque Range (Soft Joint) - Nm
2.3 - 5.7
Torque Range (soft joint)- in lbs
20.0 - 49.5
Weight - kg
0.9
Weight - lb
2.1
Technical Documents
US-LT40B Series Parts List (PDF)We are always wanting to provide more information! In need of a technical document? Let us know!
