Overview

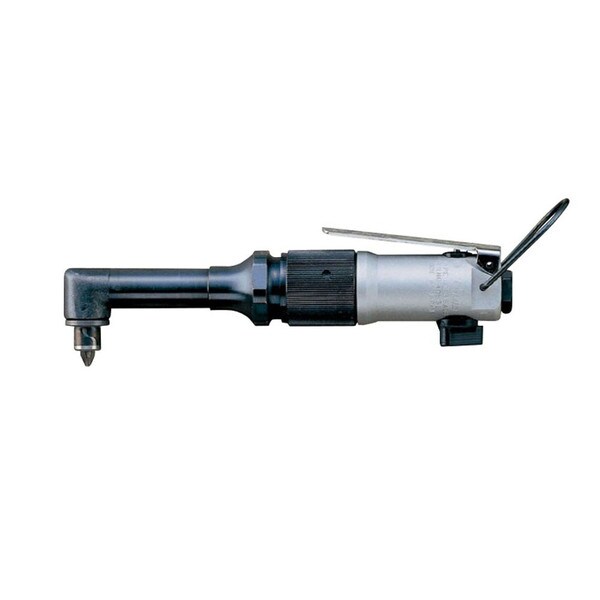

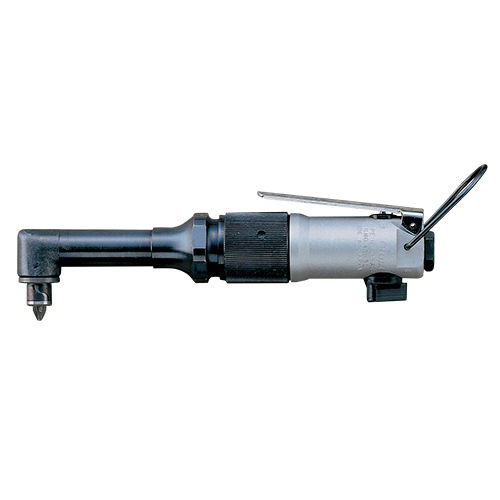

URYU Angle Head Air Screwdriver, 2.5 Nm, 2000 rpm

Angle Head Air Screwdriver, 2.5 Nm, 2000 rpm, model# US-3.5ACB by URYU; available to order from Flexible Assembly Systems. Do you see this Air Screwdriver available elsewhere for a lower price? Contact customer service on price matching!

US-3.5ACB by URYU

Features:

  • Precise repeatability improves quality
  • Minimal wear on internal parts for longer life
  • Quick shut off for minimum torque reaction
  • Speed choice for flexibility
  • Easy external torque adjustment
  • Midrange air motor provides high speed during entire
  • Ideal for industrial torque control applications
Back

Technical Specifications

SKU: US-3.5ACB-aimco
SKU
US-3.5ACB
Model
US-3.5ACB
Air Inlet Thread N.P.T. - in
1/4
Air Usage - CFM
7.0
Center to Outside - in
0.4
Center to Outside - mm
10
Free Speed - rpm
2,000
Noise Level - dB(A)
85
Overall Length (approx) - in
7.9
Overall Length (approx) - mm
200
Weight - kg
0.7
Weight - lb
1.4
