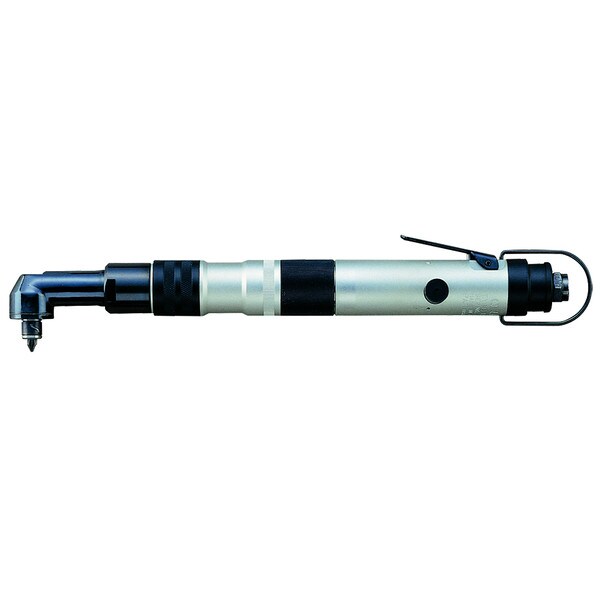

US-LT40B-08C | Angle Head Air Screwdriver, 8.7 - 34.7 in lbs, 1/4 in. hex drive
Overview
URYU Angle Head Air Screwdriver, 8.7 - 34.7 in lbs, 1/4 in. hex drive
Angle Head Air Screwdriver, 8.7 - 34.7 in lbs, 1/4 in. hex drive, model# US-LT40B-08C by URYU; available to order from Flexible Assembly Systems. Do you see this Air Screwdriver available elsewhere for a lower price? Contact customer service on price matching!
US-LT40B-08C by URYU
Features:
- Precise repeatability improves quality
- Minimal wear on internal parts for longer life
- Quick shut off for minimum torque reaction
- Speed choice for flexibility
- Easy external torque adjustment
- Midrange air motor provides high speed during entire
- Ideal for industrial torque control applications
Features & Benefits
- Precise repeatability improves quality
- Minimal wear on internal parts
- Ideal for industrial torque control applications
- Quick shut off for minimum torque reaction
Technical Specifications
SKU: US-LT40B-08C-aimco
SKU
US-LT40B-08C
Model
US-LT40B-08C
Air Inlet Thread N.P.T. - in
1/4
Air Usage - ft3/min
10.5
Angle Head Height - mm
36
Center to Outside - in
1.4
Center to Outside - mm
36
Free Speed - rpm
800
Hex Drive - in
1/4
Model
US-LT40B-08C
Noise Level - dB(A)
75
Overall Length (approx) - in
12.8
Overall Length (approx) - mm
320
Torque Range (Soft Joint) - Nm
1.6 - 4.0
Torque Range (soft joint)- in lbs
8.7 - 34.7
Weight - kg
0.9
Weight - lb
2.0
Technical Documents
US-LT40B Series Parts List (PDF)We are always wanting to provide more information! In need of a technical document? Let us know!
