US-LT40B-08 | Inline Air Screwdriver, 14.1 - 35.2 in lbs, 800 rpm
Overview

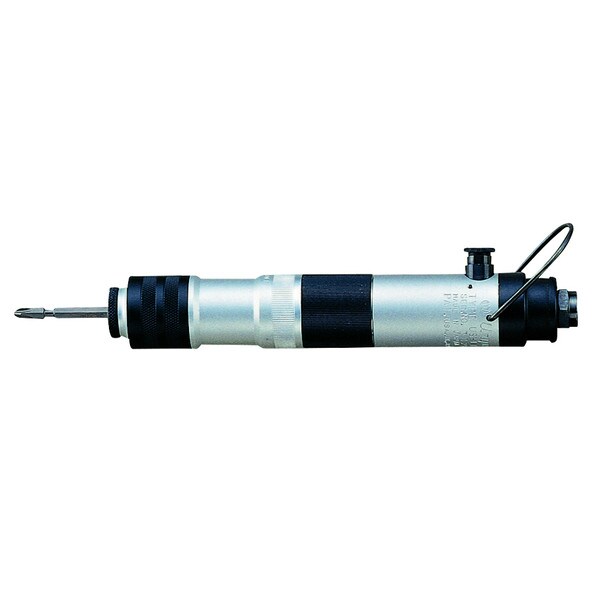

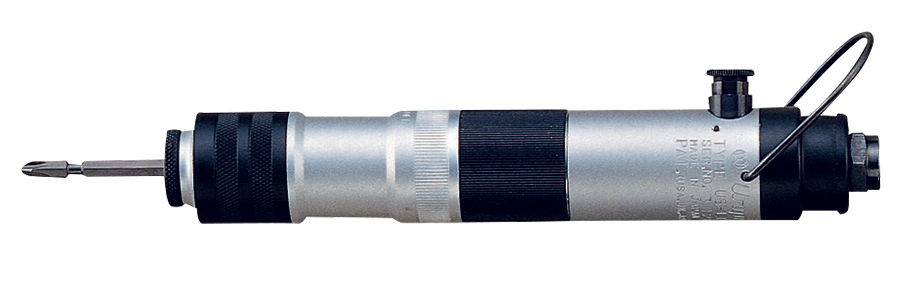

URYU Inline Air Screwdriver, 14.1 - 35.2 in lbs, 800 rpm
Inline Air Screwdriver, 14.1 - 35.2 in lbs, 800 rpm, model# US-LT40B-08 by URYU; available to order from Flexible Assembly Systems. Do you see this Air Screwdriver available elsewhere for a lower price? Contact customer service on price matching!
US-LT40B-08 by URYU
Features:
- Precise repeatability improves quality
- Minimal wear on internal parts for longer life
- Quick shut off for minimum torque reaction
- Speed choice for flexibility
- Easy external torque adjustment
- Midrange air motor provides high speed during entire
- Ideal for industrial torque control applications
360° Product Viewer
Features & Benefits
- Precise repeatability improves quality
- Minimal wear on internal parts
- Ideal for industrial torque control applications
- Quick shut off for minimum torque reaction
Technical Specifications
SKU: US-LT40B-08-aimco
SKU
US-LT40B-08
Model
US-LT40B-08
Air Inlet Thread N.P.T. - in
1/4
Air Usage - ft3/min
10.5
Center to Outside - in
0.6
Center to Outside - mm
16.5
Free Speed - rpm
800
Model
US-LT40B-08
Noise Level - dB(A)
70
Overall Length (approx) - in
8.2
Overall Length (approx) - mm
209
Torque Range (Soft Joint) - Nm
1.6 - 4.0
Torque Range (soft joint)- in lbs
14.1 - 35.2
Weight - kg
0.7
Weight - lb
1.4
Technical Documents
US-LT40B Series Parts List (PDF)We are always wanting to provide more information! In need of a technical document? Let us know!
