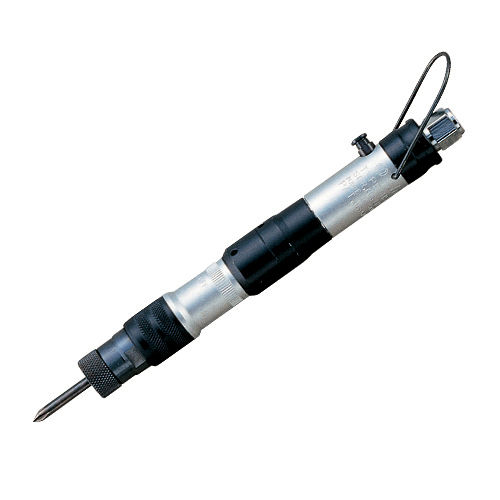

US-LT10B | Inline Air Screwdriver, 1.8 - 5.3 in lbs, 1000 rpm
Overview
URYU Inline Air Screwdriver, 1.8 - 5.3 in lbs, 1000 rpm
Inline Air Screwdriver, 1.8 - 5.3 in lbs, 1000 rpm, model# US-LT10B by URYU; available to order from Flexible Assembly Systems. Do you see this Air Screwdriver available elsewhere for a lower price? Contact customer service on price matching!
US-LT10B by URYU
Features:
- Precise repeatability improves quality
- Minimal wear on internal parts for longer life
- Quick shut off for minimum torque reaction
- Speed choice for flexibility
- Easy external torque adjustment
- Midrange air motor provides high speed during entire
- Ideal for industrial torque control applications
Features & Benefits
- Precise repeatability improves quality
- Minimal wear on internal parts
- Ideal for industrial torque control applications
- Quick shut off for minimum torque reaction
Technical Specifications
SKU: US-LT10B-aimco
SKU
US-LT10B
Model
US-LT10B
Air Inlet Thread N.P.T. - in
1/8
Air Usage - ft3/min
5.2
Center to Outside - in
0.5
Center to Outside - mm
12
Free Speed - rpm
1,000
Model
US-LT10B
Noise Level - dB(A)
75
Overall Length (approx) - in
7.5
Overall Length (approx) - mm
191
Torque Range (Soft Joint) - Nm
0.20 - 0.6
Torque Range (soft joint)- in lbs
1.8 - 5.3
Weight - kg
0.3
Weight - lb
0.6
Technical Documents
AIMCO US-LT10 Parts List (PDF)We are always wanting to provide more information! In need of a technical document? Let us know!
