US-LT20B-10 | Inline Air Screwdriver, 3.1 - 9.7 in lbs, 1000 rpm
Overview

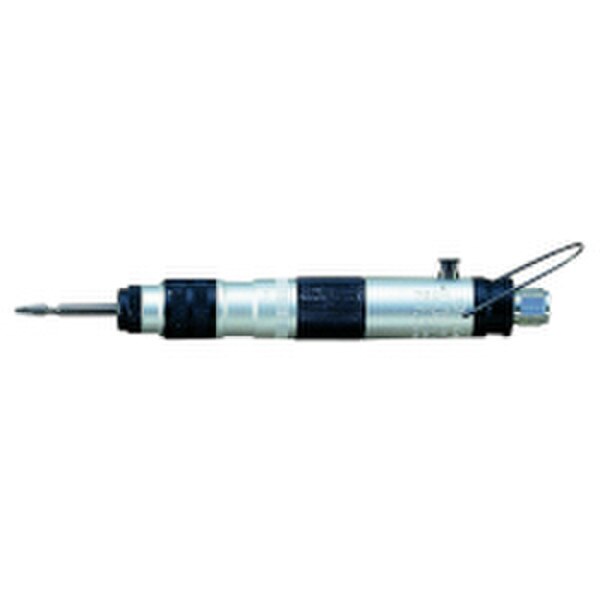

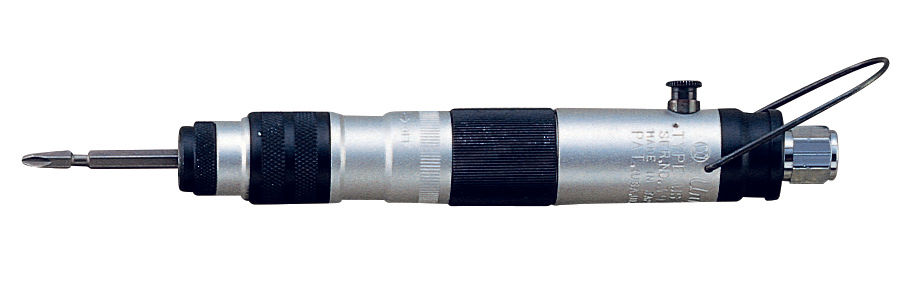

URYU Inline Air Screwdriver, 3.1 - 9.7 in lbs, 1000 rpm
Inline Air Screwdriver, 3.1 - 9.7 in lbs, 1000 rpm, model# US-LT20B-10 by URYU; available to order from Flexible Assembly Systems. Do you see this Air Screwdriver available elsewhere for a lower price? Contact customer service on price matching!
US-LT20B-10 by URYU
Features:
- Precise repeatability improves quality
- Minimal wear on internal parts for longer life
- Quick shut off for minimum torque reaction
- Speed choice for flexibility
- Easy external torque adjustment
- Midrange air motor provides high speed during entire
- Ideal for industrial torque control applications
360° Product Viewer
Features & Benefits
- Precise repeatability improves quality
- Minimal wear on internal parts
- Ideal for industrial torque control applications
- Quick shut off for minimum torque reaction
Technical Specifications
SKU: US-LT20B-10-aimco
SKU
US-LT20B-10
Model
US-LT20B-10
Air Inlet Thread N.P.T. - in
1/8
Air Usage - ft3/min
5.6
Center to Outside - in
0.5
Center to Outside - mm
13
Free Speed - rpm
1,000
Model
US-LT20B-10
Noise Level - dB(A)
70
Overall Length (approx) - in
7.1
Overall Length (approx) - mm
180
Torque Range (Soft Joint) - Nm
0.4 - 1.1
Torque Range (soft joint)- in lbs
3.1 - 9.7
Weight - kg
0.3
Weight - lb
0.7
Technical Documents
URYU US-LT Series Operators Manual (PDF)We are always wanting to provide more information! In need of a technical document? Let us know!
