US-LT30BL-17 | Inline Air Screwdriver, 6.2 - 13.2 in lbs, 1/4 in. hex drive
Overview

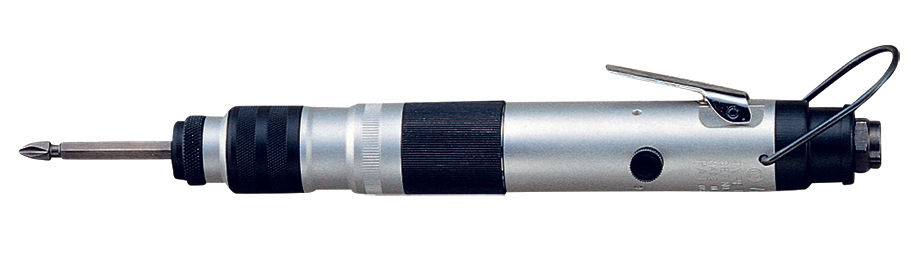

URYU Inline Air Screwdriver, 6.2 - 13.2 in lbs, 1/4 in. hex drive
Inline Air Screwdriver, 6.2 - 13.2 in lbs, 1/4 in. hex drive, model# US-LT30BL-17 by URYU; available to order from Flexible Assembly Systems. Do you see this Air Screwdriver available elsewhere for a lower price? Contact customer service on price matching!
US-LT30BL-17 by URYU
Features:
- Precise repeatability improves quality
- Minimal wear on internal parts for longer life
- Quick shut off for minimum torque reaction
- Speed choice for flexibility
- Easy external torque adjustment
- Midrange air motor provides high speed during entire
- Ideal for industrial torque control applications
Features & Benefits
- Precise repeatability improves quality
- Minimal wear on internal parts
- Ideal for industrial torque control applications
- Quick shut off for minimum torque reaction
Technical Specifications
SKU: US-LT30BL-17-aimco
SKU
US-LT30BL-17
Model
US-LT30BL-17
Air Usage - ft3/min
5.2
Center to Outside - in
0.6
Center to Outside - mm
15
Free Speed - rpm
1,700
Hex Drive - in
1/4
Model
US-LT30BL-17
Noise Level - dB(A)
70
Overall Length (approx) - in
8.2
Overall Length (approx) - mm
229
Torque Range (Soft Joint) - Nm
0.7 - 1.5
Torque Range (soft joint)- in lbs
6.2 - 13.2
Weight - kg
0.5
Weight - lb
1.2
Technical Documents
URYU US-LT Series Operators Manual (PDF)We are always wanting to provide more information! In need of a technical document? Let us know!
