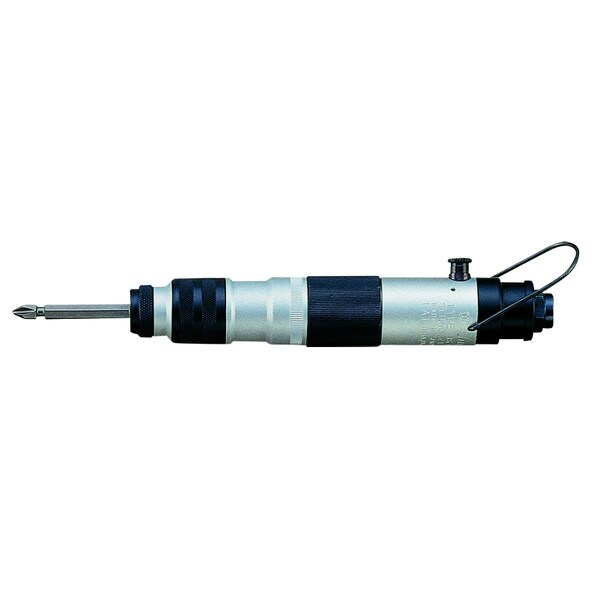

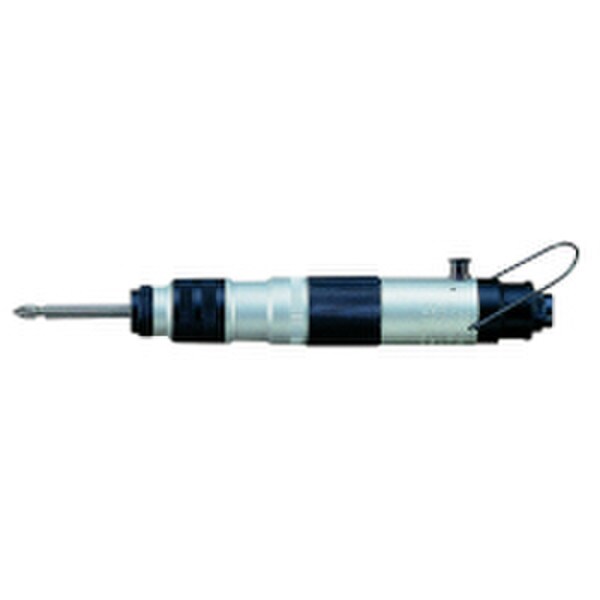

US-LT30B-11 | Inline Air Screwdriver, 9.7 - 18.5 in lbs, 1100 rpm
Overview
URYU Inline Air Screwdriver, 9.7 - 18.5 in lbs, 1100 rpm
Inline Air Screwdriver, 9.7 - 18.5 in lbs, 1100 rpm, model# US-LT30B-11 by URYU; available to order from Flexible Assembly Systems. Do you see this Air Screwdriver available elsewhere for a lower price? Contact customer service on price matching!
US-LT30B-11 by URYU
Features:
- Precise repeatability improves quality
- Minimal wear on internal parts for longer life
- Quick shut off for minimum torque reaction
- Speed choice for flexibility
- Easy external torque adjustment
- Midrange air motor provides high speed during entire
- Ideal for industrial torque control applications
Features & Benefits
- Precise repeatability improves quality
- Minimal wear on internal parts
- Ideal for industrial torque control applications
- Quick shut off for minimum torque reaction
Technical Specifications
SKU: US-LT30B-11-aimco
SKU
US-LT30B-11
Model
US-LT30B-11
Air Inlet Thread N.P.T. - in
1/4
Air Usage - ft3/min
7.0
Center to Outside - in
0.6
Center to Outside - mm
15.5
Free Speed - rpm
1,100
Model
US-LT30B-11
Noise Level - dB(A)
70
Overall Length (approx) - in
7.4
Overall Length (approx) - mm
187
Torque Range (Soft Joint) - Nm
1.1 - 2.1
Torque Range (soft joint)- in lbs
9.7 - 18.5
Weight - kg
0.4
Weight - lb
0.9
Technical Documents
URYU US-LT Series Operators Manual (PDF)We are always wanting to provide more information! In need of a technical document? Let us know!
