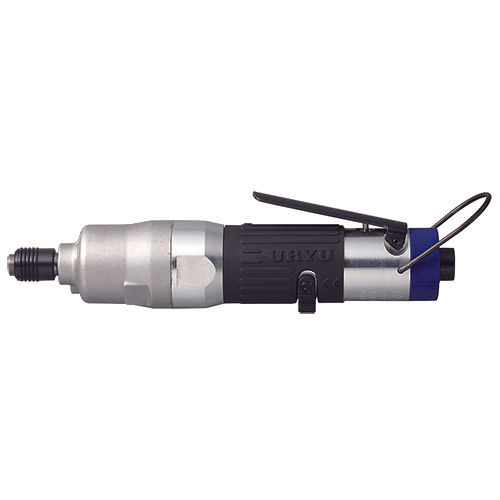

UAT-50SDL | Inline Auto Shut Off Pulse Tool, 7 - 15.5 Nm, 1/4 in. drive
Overview
URYU Inline Auto Shut Off Pulse Tool, 7 - 15.5 Nm, 1/4 in. drive
Inline Auto Shut Off Pulse Tool, 7 - 15.5 Nm, 1/4 in. drive, model# UAT-50SDL by URYU; available to order from Flexible Assembly Systems. Do you see this Pulse Tool available elsewhere for a lower price? Contact customer service on price matching!
UAT-50SDL by URYU
UAT features patented Auto Relief Technology providing additional control to the application of torque during the pulsing events.
Features:
- Auto Relief eliminates initial spike of torque during a cycle. Highly effective on hard joint applications
- Auto Relief ramps up pressure within the pulse unit resulting in more pulses in less time providing a more efficient and even torque event
Features & Benefits
- UAT features patented Auto Relief Technology providing additional control to the application of torque during pulsing events
- Auto Relief eliminates initial spike of torque during a cycle
- Highly effective on hard joint applications
Technical Specifications
SKU: UAT-50SDL-aimco
SKU
UAT-50SDL
Model
UAT-50SDL
Air Hose Size - in
1/4
Air Inlet Thread N.P.T. - in
1/4
Air Usage - CFM
7
Free Speed - rpm
3800
Hex Drive - in
1/4
Overall Length - in
8.9
Overall Length - mm
227
Sound Level - dB(A)
75
Torque Range - ft-lbs
5.2-11.5
Torque Range - Nm
7-15.5
Weight - kg
.85
Weight - lb
1.9
Technical Documents
We are always wanting to provide more information! In need of a technical document? Let us know!
