US-LT31PB-05 | Pistol Grip Air Screwdriver, 21.1 - 44 in lbs, 500 rpm
Overview

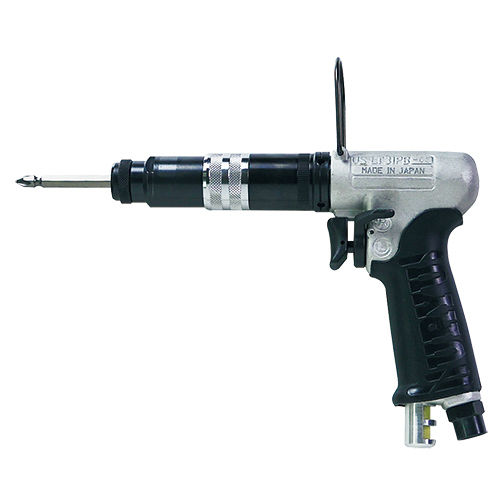

URYU Pistol Grip Air Screwdriver, 21.1 - 44 in lbs, 500 rpm
Pistol Grip Air Screwdriver, 21.1 - 44 in lbs, 500 rpm, model# US-LT31PB-05 by URYU; available to order from Flexible Assembly Systems. Do you see this Air Screwdriver available elsewhere for a lower price? Contact customer service on price matching!
US-LT31PB-05 by URYU
Features:
- Precise repeatability improves quality
- Minimal wear on internal parts for longer life
- Quick shut off for minimum torque reaction
- Speed choice for flexibility
- Easy external torque adjustment
- Midrange air motor provides high speed during entire
- Ideal for industrial torque control applications
Features & Benefits
- Precise repeatability improves quality
- Minimal wear on internal parts
- Ideal for industrial torque control applications
- Quick shut off for minimum torque reaction
Technical Specifications
SKU: US-LT31PB-05-aimco
SKU
US-LT31PB-05
Model
US-LT31PB-05
Air Inlet Thread N.P.T. - in
1/4
Air Usage - ft3/min
7.0
Center to Outside - in
0.6
Center to Outside - mm
16
Free Speed - rpm
500
Model
US-LT31PB-05
Noise Level - dB(A)
70
Overall Length (approx) - in
8.2
Overall Length (approx) - mm
189
Torque Range (Soft Joint) - Nm
2.4 - 5.0
Torque Range (soft joint)- in lbs
21.1 - 44.0
Weight - kg
0.9
Weight - lb
1.9
Technical Documents
URYU US-LT Series Operators Manual (PDF)We are always wanting to provide more information! In need of a technical document? Let us know!
