US-LT51PB-05 | Pistol Grip Air Screwdriver, 44 - 92.4 in lbs, 480 rpm
Overview

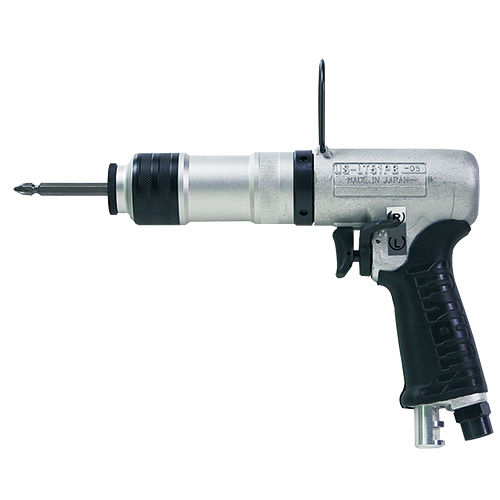

URYU Pistol Grip Air Screwdriver, 44 - 92.4 in lbs, 480 rpm
Pistol Grip Air Screwdriver, 44 - 92.4 in lbs, 480 rpm, model# US-LT51PB-05 by URYU; available to order from Flexible Assembly Systems. Do you see this Air Screwdriver available elsewhere for a lower price? Contact customer service on price matching!
US-LT51PB-05 by URYU
Features:
- Precise repeatability improves quality
- Minimal wear on internal parts for longer life
- Quick shut off for minimum torque reaction
- Speed choice for flexibility
- Easy external torque adjustment
- Midrange air motor provides high speed during entire
- Ideal for industrial torque control applications
Features & Benefits
- Precise repeatability improves quality
- Minimal wear on internal parts
- Ideal for industrial torque control applications
- Quick shut off for minimum torque reaction
Technical Specifications
SKU: US-LT51PB-05-aimco
SKU
US-LT51PB-05
Model
US-LT51PB-05
Air Inlet Thread N.P.T. - in
1/4
Air Usage - ft3/min
17.5
Center to Outside - in
0.8
Center to Outside - mm
20
Free Speed - rpm
480
Model
US-LT51PB-05
Noise Level - dB(A)
74
Overall Length (approx) - in
8.5
Overall Length (approx) - mm
198
Torque Range (Soft Joint) - Nm
5.0 - 10.5
Torque Range (soft joint)- in lbs
44.0 - 92.4
Weight - kg
1.2
Weight - lb
2.6
Technical Documents
URYU US-LT Series Operators Manual (PDF)We are always wanting to provide more information! In need of a technical document? Let us know!
