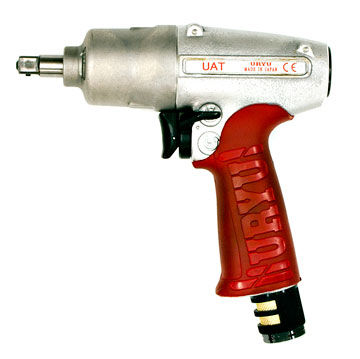

UAT-80 | Pistol Grip Auto Shut Off Pulse Tool, 45 - 63 Nm, 3/8 in. drive
Overview
URYU Pistol Grip Auto Shut Off Pulse Tool, 45 - 63 Nm, 3/8 in. drive
Pistol Grip Auto Shut Off Pulse Tool, 45 - 63 Nm, 3/8 in. drive, model# UAT-80 by URYU; available to order from Flexible Assembly Systems. Do you see this Pulse Tool available elsewhere for a lower price? Contact customer service on price matching!
UAT-80 by URYU
UAT features patented Auto Relief Technology providing additional control to the application of torque during the pulsing events.
Features:
- Auto Relief eliminates initial spike of torque during a cycle. Highly effective on hard joint applications
- Auto Relief ramps up pressure within the pulse unit resulting in more pulses in less time providing a more efficient and even torque event
Features & Benefits
- UAT features patented Auto Relief Technology providing additional control to the application of torque during pulsing events
- Auto Relief eliminates initial spike of torque during a cycle
- Highly effective on hard joint applications
Technical Specifications
SKU: UAT-80-aimco
SKU
UAT-80
Model
UAT-80
Air Hose Size - in
3/8
Air Inlet Thread N.P.T. - in
1/4
Air Usage - CFM
16.8
Free Speed - rpm
5600
Overall Length - in
7.3
Overall Length - mm
186
Sound Level - dB(A)
80
Square Drive - in
3/8
Torque Range - ft-lbs
33.3-46.6
Torque Range - Nm
45-63
Weight - kg
1.3
Weight - lb
2.8
