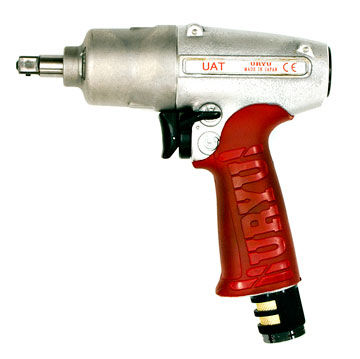

UAT-40 | Pistol Grip Auto Shut Off Pulse Tool, 4.5 - 8 Nm, 3/8 in. drive
Overview
URYU Pistol Grip Auto Shut Off Pulse Tool, 4.5 - 8 Nm, 3/8 in. drive
Pistol Grip Auto Shut Off Pulse Tool, 4.5 - 8 Nm, 3/8 in. drive, model# UAT-40 by URYU; available to order from Flexible Assembly Systems. Do you see this Pulse Tool available elsewhere for a lower price? Contact customer service on price matching!
UAT-40 by URYU
UAT features patented Auto Relief Technology providing additional control to the application of torque during the pulsing events.
Features:
- Auto Relief eliminates initial spike of torque during a cycle. Highly effective on hard joint applications
- Auto Relief ramps up pressure within the pulse unit resulting in more pulses in less time providing a more efficient and even torque event
Features & Benefits
- UAT features patented Auto Relief Technology providing additional control to the application of torque during pulsing events
- Auto Relief eliminates initial spike of torque during a cycle
- Highly effective on hard joint applications
Technical Specifications
SKU: UAT-40-aimco
SKU
UAT-40
Model
UAT-40
Air Hose Size - in
1/4
Air Inlet Thread N.P.T. - in
1/4
Air Usage - CFM
8.8
Free Speed - rpm
3800
Overall Length - in
6.4
Overall Length - mm
162
Sound Level - dB(A)
75
Square Drive - in
3/8
Torque Range - ft-lbs
3.3-5.9
Torque Range - Nm
4.5-8.0
Weight - kg
0.9
Weight - lb
2
