UAT-100 | Pistol Grip Auto Shut Off Pulse Tool, 70 - 130 Nm, 1/2 in. drive
Overview

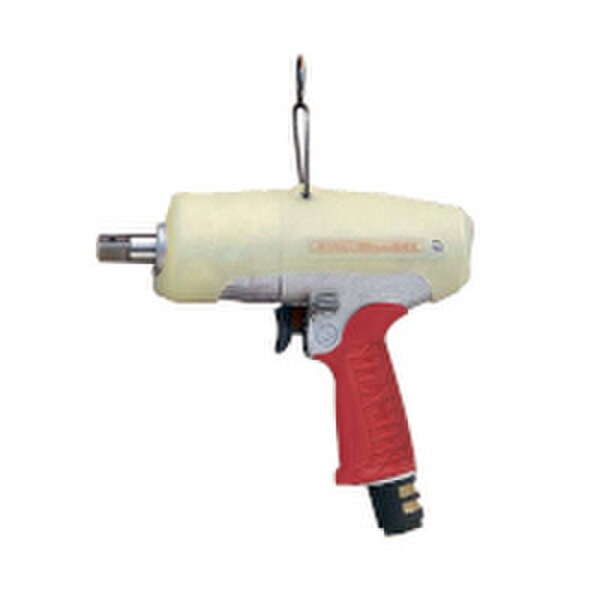

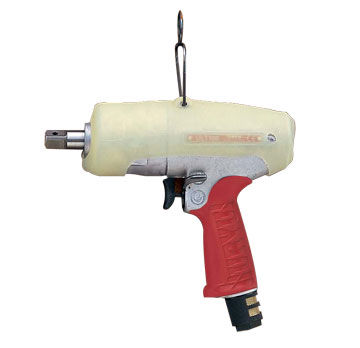

URYU Pistol Grip Auto Shut Off Pulse Tool, 70 - 130 Nm, 1/2 in. drive
Pistol Grip Auto Shut Off Pulse Tool, 70 - 130 Nm, 1/2 in. drive, model# UAT-100 by URYU; available to order from Flexible Assembly Systems. Do you see this Pulse Tool available elsewhere for a lower price? Contact customer service on price matching!
UAT-100 by URYU
UAT features patented Auto Relief Technology providing additional control to the application of torque during the pulsing events.
Features:
- Auto Relief eliminates initial spike of torque during a cycle. Highly effective on hard joint applications
- Auto Relief ramps up pressure within the pulse unit resulting in more pulses in less time providing a more efficient and even torque event
Features & Benefits
- UAT features patented Auto Relief Technology providing additional control to the application of torque during pulsing events
- Auto Relief eliminates initial spike of torque during a cycle
- Highly effective on hard joint applications
Technical Specifications
SKU: UAT-100-aimco
SKU
UAT-100
Model
UAT-100
Air Hose Size - in
3/8
Air Inlet Thread N.P.T. - in
1/4
Air Usage - CFM
19.3
Free Speed - rpm
5200
Overall Length - in
7.8
Overall Length - mm
199
Sound Level - dB(A)
82
Square Drive - in
1/2
Torque Range - ft-lbs
51.8-96.2
Torque Range - Nm
70-130
Weight - kg
1.7
Weight - lb
3.7
