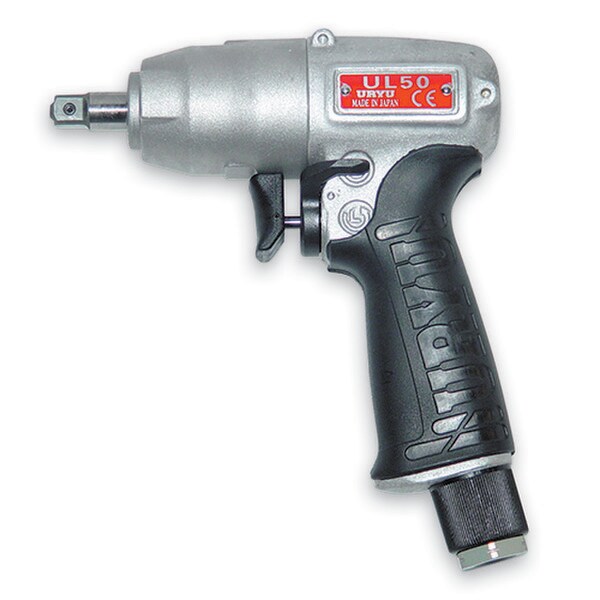

UL-50 | Pistol Grip Non Shut Off Pulse Tool, 22 - 35 Nm, 3/8 in. square drive
Overview
URYU Pistol Grip Non Shut Off Pulse Tool, 22 - 35 Nm, 3/8 in. square drive
Pistol Grip Non Shut Off Pulse Tool, 22 - 35 Nm, 3/8 in. square drive, model# UL-50 by URYU; available to order from Flexible Assembly Systems. Do you see this Pulse Tool available elsewhere for a lower price? Contact customer service on price matching!
UL-50 by URYU
Whether the goal is improving productivity, ergonomics, reliability, UL Series contains the technology to achieve success.
Features:
- Models available from 6 – 230 Nm (4.4 – 170 Ft-lb)
- Available in Standard, Tightening Monitor, and Transducerized versions
- High power-to-weight ratio
- Reduced maintenance and extended service life
- Environmentally friendly design
- Accurate and repeatable
Features & Benefits
- High power-to-weight ratio
- Reduced maintenance and extended service life
- Accurate and repeatable
- Environmentally friendly design
Technical Specifications
SKU: UL-50-aimco
SKU
UL-50
Model
UL-50
Air Hose Size - in
1/4
Air Inlet Thread N.P.T. - in
1/4
Air Usage - CFM
10.5
Free Speed - rpm
6,400
Model
UL-50
Overall Length - in
5.5
Overall Length - mm
140
Sound Level - dB(A)
78
Square Drive - in
3/8
Torque Range - ft lbs
16.3 - 25.9
Torque Range - Nm
22 - 35
Weight - kg
0.8
Weight - lb
1.7
Technical Documents
We are always wanting to provide more information! In need of a technical document? Let us know!
