Wilton 11754

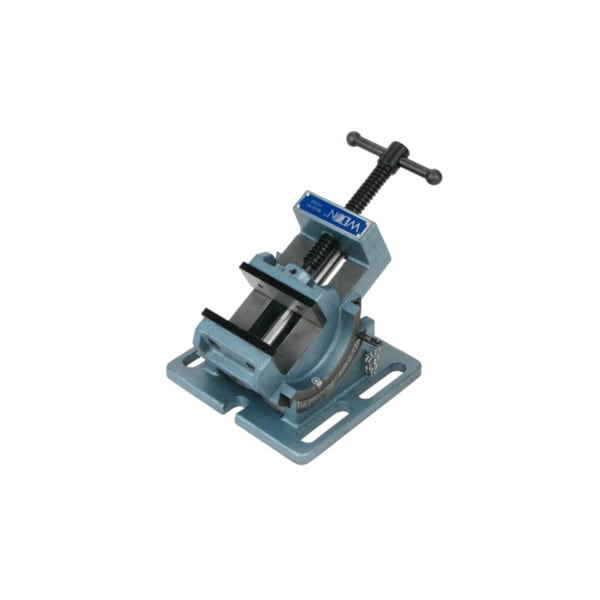

4" Cradle Style Angle Drill Press Vise

The cradle style drill press vise is designed for angled drilling and tapping applications. All boast hardened v-grooved jaws for clamping round objects vertically and horizontally. Backed by Wilton's lifetime warranty.

Features:

• Designed for applications including drilling, tapping and reaming requiring angle setup
• Cradle design with 90° vertical indexing, scaled in 1° increments
• Side tommy bar allows secure locking at any increment from 0° - 90°
• Pin hard stops at 0°, 15°, 30°, 45°, 60°, 75° and 90° for common applications
• Durable construction with fine grain cast iron castings and hardened smooth vise jaws
• Black oxide coated screw provides consistent clamping pressure and durabilityHighly accurate with beds and bases parallel to ±.001"
• Base has four 1/2" shoulder slots for quick, easy positioning on the machine tableBase dimensions: 6-1/2” x 6-1/2"
