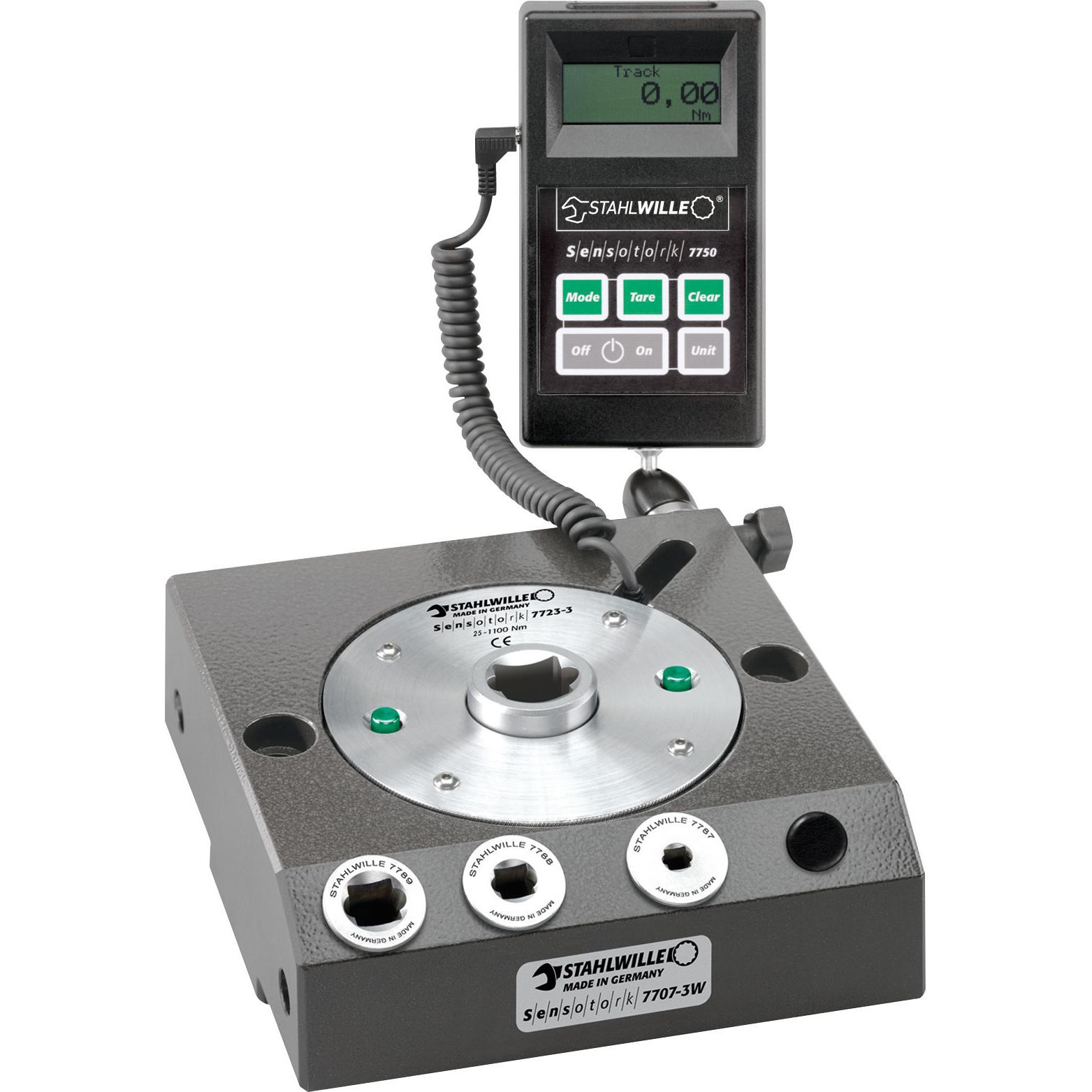

Workshop Tester 96521072, 7707-2W
Overview
The Stahlwille 7707-2W is a professional-grade electronic torque tester engineered for precision calibration and verification of torque wrenches in both clockwise and anticlockwise directions. Designed for flexible, modular use, it includes a patented transducer, registered-design display unit, and tripod with 1.5 m extension cable for optimal visibility with long wrenches.
Built for lab and shop environments, the 7707-2W features a broad measuring range from ~2% to 100% of the rated value. The QuickRelease safety lock allows for fast transducer swaps, minimizing downtime during recalibration. Transducers mount securely on the included base, which supports horizontal or vertical orientations for wall or bench installation.
The digital display unit shows real-time torque values with high accuracy and includes a spiral cable and mains power adapter (100–230V) with interchangeable plug adapters. A 12V DC input allows for mobile operation in vehicles.
With USB PC connectivity, the optional SENSOTORK software, 7759-4 enables seamless data transfer and logging, with power supplied via USB (no separate power required). Even while individual transducers are being recalibrated, the main tester unit can remain in use — ensuring no workflow interruptions.
Certified to DIN 51309:2005, Class 2, and DKD-R 3-8:2003, this system is ideal for QA, R&D, and industrial maintenance.
Features & Benefits
- Electronic torque tester system for torque wrench verification
- QuickRelease safety lock for fast transducer changes
- Auto transducer detection for plug-and-play setup
- Modular system – transducer recalibration does not interrupt tester operation
- Low-profile transducer design reduces lateral forces, increasing measurement precision
- Operating temperature: -20°C to +60°C
- 3 measuring units: N·m, ft·lb, in·lb
- Mobile-capable: 12V in-car supply support
- Certified to DIN 51309 and DKD-R 3-8
Technical Specifications
Technical Documents
We are always wanting to provide more information! In need of a technical document? Let us know!
Frequently Asked Questions
Can the 7707-2W handle different torque wrench sizes?
Is the 7707-2W suitable for field use?
Yes. The 7707-2W can be powered by 12V vehicle supply and has a rugged build for mobile applications.
What’s the benefit of the tripod and cable setup?
It provides better visibility of the display when working with long torque wrenches, especially in vertical setups.
Can I keep using the tester if a transducer is being recalibrated?
Yes. The 7707-2W continues to operate with other transducers while one is being serviced.
How does the 7707-2W connect to a PC?
Via USB using optional software, 7759-4. It also powers itself from the PC—no extra supply needed.
