AIMCOAD-D1098-P

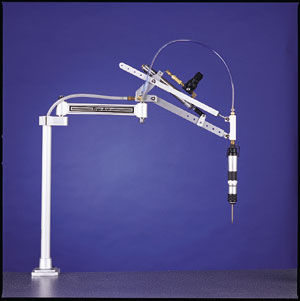

Parallel Oil Cylinder Series Ergo Arm

Ergo-Arms provide ergonomic support for electric and pneumatic tools, reduces operator fatigue and increases productivity, consistency, and accuracy.

$1,194.38List $1,365.00

Save $170.62

Total$1,194.38Taxes & shipping at checkout

Quantity

Item Ships free Order total must be over $999.99, under 20 lbs and shipping within continental USA

Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.

Documents2 files

AD-D1098-P | Parallel Oil Cylinder Series Ergo ArmAD-D1098-P

Total$1,194.38

4 items

Add-on accessories that can be purchased alongside this product.

Product	Max Torque - Ft Lbs	Price	Qty
AD-D1098-PACAD-D1098-PAC \| Ergo-Arm Parallel Air Cylinder$1,194.38	11	$1,194.38	1	View details
AD-D1098-PACEAD-D1098-PACE \| Parallel Air Cylinder Series for Electric Driver Ergo Arm	3.1		1	View details
AD-D1098-SAD-D1098-S \| Ergo-Arm Standard Oil Cylinder Series	110		1	View details
AD-D1098-SACAD-D1098-SAC \| Ergo-Arm Standard Air Cylinder Series	110		1	View details

Reduce operator fatigue and increase productivity with the Ergo-Arm ergonomic tool support sytem series
Limits operator influence
Use with inline pneumatic tool
Vertical screw application Arm movement is up-down and 180° side-side
Power source for arm is hydraulic (no air line is required)

Technical Specifications
SKU	AD-D1098-P
Capacity - kg	0 - 7
Capacity - lbs	0 - 15
Maximum Torque - Nm	12
Maximum Torque* - in lbs	110
Model	AD-D1098-P
Reach - in	4 - 33
Reach - mm	102 - 838
MPN	AD-D1098-P
Features & Benefits
Parallel Oil Cylinder Series
Allows for freedom of movement
Vertical adjustment eliminates cross-threading
Fixtured tool increases repeatability
