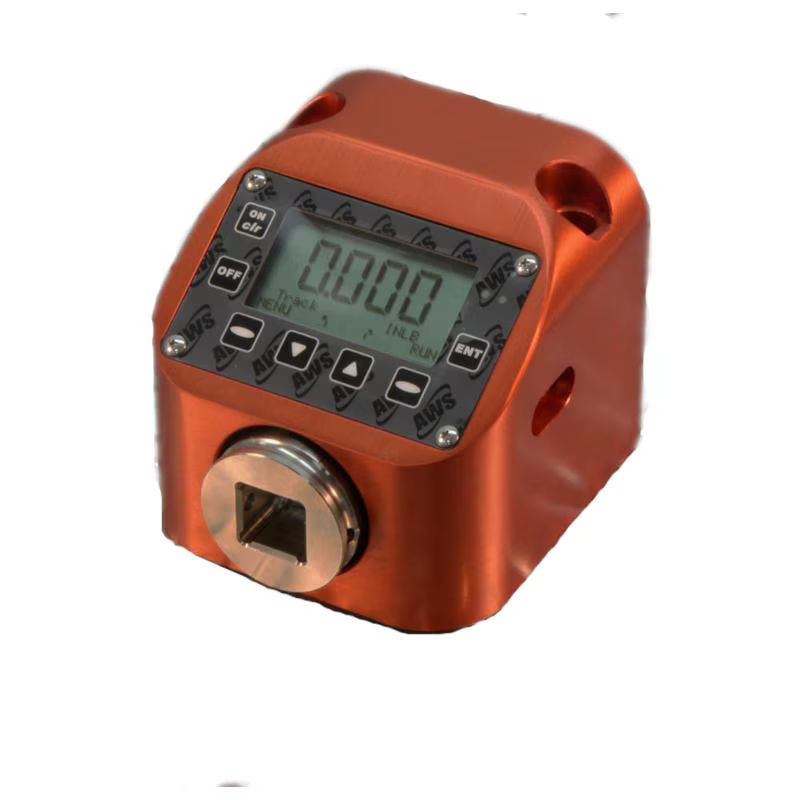

Advanced Witness AWS-QC Series Simple Bench Mount Testers
One of the most popular entry level testers due to their great value. Low cost, high quality and ease of use
Models Available
36 itemsOther models in the same range, from NetSuite's Models Available list. Each is a separate product with its own SKU and price, so they can be added to the order.
Details
Product information
Overview
The QC series tester will support a wide range of tools and torque levels, and has been specifically designed to quickly change from horizontal to vertical operation with its special rotating display and dual bolting configuration.
This unit is compact, lightweight, and highly durable. Ergonomically designed for inline or pistol grip tool calibration. Ideal for verifying during production to limit down times and increase productivity.
Features:
- Single-step access to all functions
- Bidirectional accuracy of ±0.5% - 1% of indicated reading. ±0.25% accuracy available at an additional cost.
- Eight (8) available engineering units: Oz.in., Lb.in., Lb.ft., Nm, cNm, KgfCm, gfCm, Kgfm
- 3 modes of operation: Track, Peak, and 1st Peak
- NiMH rechargeable batteries provide 8-10 hours continuous use
- Machined aluminum case for extended life and durability
- For testing click, dial, and digital wrenches, plus most power tools including impulse and DC electric.
Specifications:
Dimensions: 3.25"(L) X 3.125"(W) X 3.75"(H)
Weight: 2.5 Lbs.
Operating Temp: 0-50°C
Battery Input Power: NiMH
Line Input Power: 9 VDCUnit includes:
Battery Charger
Rundown Adaptor (Joint Simulator)
Operating Manual
Certificate of Calibration
Transducer Ranges
| Model | Range | Drive Size | Run-Down Fixture |
| QC-100z-1/4 | 10 - 100 ozf-in | 1/4" | Included |
| QC-200z-1/4 | 20 - 200 ozf-in | 1/4" | Included |
| QC-10i-1/4 | 1 - 10 lbf-in | 1/4" | Included |
| QC-25i-1/4 | 2.5 - 25 lbf-in | 1/4" | Included |
| QC-50i-1/4 | 5 - 50 lbf-in | 1/4" | Included |
| QC-100i-1/4 | 10 - 100 lbf-in | 1/4" | Included |
| QC-150i-1/4 | 15 - 150 lbf-in | 1/4" | Included |
| QC-250i-3/8 | 25 - 250 lbf-in | 3/8" | Included |
| QC-500i-3/8 | 50 - 500 lbf-in | 3/8" | Included |
| QC-750i-3/8 | 75 - 750 lbf-in | 3/8" | Included |
| QC-1000i-3/8 | 100 - 1000 lbf-in | 3/8" | Included |
| QC-100f-1/2 | 10 - 100 lbf-ft | 1/2" | Optional |
| QC-150f-1/2 | 15 - 150 lbf-ft | 1/2" | Optional |
| QC-250f-1/2 | 25 - 250 lbf-ft | 1/2" | Optional |
| QC-500f-3/4 | 50 - 500 lbf-ft | 3/4" | Optional |
| QC-750f-3/4 | 75 - 750 lbf-ft | 3/4" | Optional |
| Features & Benefits | |
|---|---|
| Bidirectional use for CW and CCW torque measurement. | |
| Peak, First Peak and Track modes, upper and lower limits, memory and serial data output. | |
| Reads Oz.in, Lb.in., Lb.ft, Nm, cNm, KgfCm, gfCm, Kgfm | |
| Intuitive user interface | |
| Reads Oz.in, Lb.in. | |
| Lb.ft, Nm, cNm, KgfCm, gfCm, Kgfm,Intuitive user interface |
