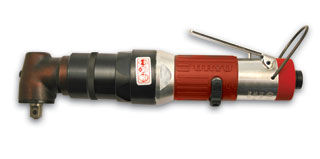

Angle Head Auto Shut Off Pulse Tool, 30 - 50 Nm, 1/2 in. square drive
Although the Alpha tool launched the twin chamber motor, it is still unique today. Most manufacturers only include 6 blades in their dual chamber motors, while the Alpha tools utilize 9 blades.
Item Ships free Order total must be over $999.99, under 20 lbs and shipping within continental USA
- Free UPS Ground over $999.99
- Factory-authorised service
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
Details
Product information
Overview
URYU Angle Head Auto Shut Off Pulse Tool, 30 - 50 Nm, 1/2 in. square drive
Angle Head Auto Shut Off Pulse Tool, 30 - 50 Nm, 1/2 in. square drive, model# ULT-70CH by URYU; available to order from Flexible Assembly Systems. Do you see this Pulse Tool available elsewhere for a lower price? Contact customer service on price matching!
ULT-70CH by URYU
Whether the goal is improving productivity, ergonomics, reliability, or quality, the UL Series contains the technology to achieve success.
Features
- Models available from 6 – 230 Nm (4.4 – 170 Ft-lb)
- Available in Standard, Tightening Monitor, and Transducerized versions High power-to-weight ratio
- Reduced maintenance and extended service life
- Environmentally friendly design
- Accurate and repeatable
| Technical Specifications | |
|---|---|
| SKU | ULT-70CH |
| Model | ULT-70CH |
| Air Usage - CFM | 12.3 |
| Capacity (Nominal Bolt Size) in | 0.31-0.38 |
| Capacity (Nominal Bolt Size) mm | 8-10 |
| Center To Outside - in | 1.05 |
| Center To Outside - mm | 26.5 |
| Free Speed - rpm | 2,500 |
| Max Torque - ft lbs | 22.2-37.0 |
| Max Torque - Nm | 30.0-50.0 |
| Overall Length - in | 11.4 |
| Overall Length - mm | 290 |
| Square Drive - in | 1/2 |
| Weight - kg | 1.85 |
| Weight - lb | 4.1 |
| MPN | ULT-70CH |
