AIMCOUDP-TA55 (B)
Pistol Grip Auto Shut Off Pulse Tool, 12.5 - 25 Nm, 3/8 in. square drive
UDP-TA55 (B) | Pistol Grip Auto Shut Off Pulse Tool, 12.5 - 25 Nm, 3/8 in. square drive
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
UDP-TA55 (B) | Pistol Grip Auto Shut Off Pulse Tool, 12.5 - 25 Nm, 3/8 in. square driveUDP-TA55 (B)
Price on request
Details
Product information
Overview

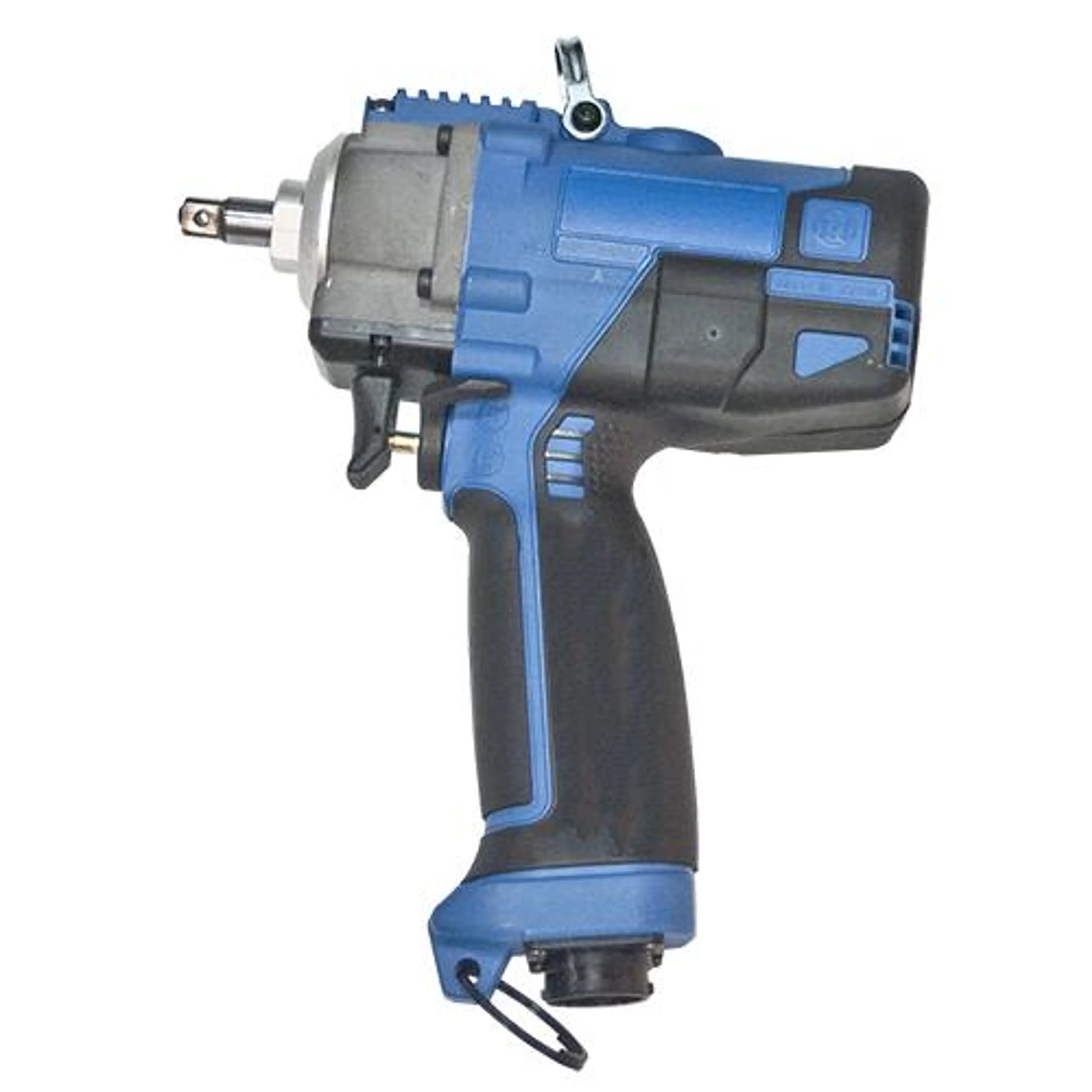

AIMCO Pistol Grip Auto Shut Off Pulse Tool, 12.5 - 25 Nm, 3/8 in. square drive
Pistol Grip Auto Shut Off Pulse Tool, 12.5 - 25 Nm, 3/8 in. square drive, model# UDP-TA55 (B) by AIMCO; available to order from Flexible Assembly Systems. Do you see this Pulse Tool available elsewhere for a lower price? Contact customer service on price matching!
UDP-TA55 (B) by AIMCO
The next-generation cordless pulse tool combines industry-leading pulse technology with Lithium-Ion battery power.
Features:
- Uryu Direct Battery Pulse (UDBP) design connects the pulse unit directly to the motor — no reduction gearing — resulting in a tool with less noise and vibration
- Brushless Internal Permanent Magnet (IPM) motor provides longer motor life and more efficiency allowing more fastening cycles per battery charge
- Auto Relief Technology provides additional control to the application of torque during the pulsing events
- On board LEDs for application illumination
- Li-Ion battery provides more power and ends the "battery memory" issues of NiCd batteries
- Tool/battery combination is 27% lighter than earlier UBP tools
- RF Types transmit "good" signal to receiver (sold separately) over 426 Mhz
- “Good” signal can be used for Poka-Yoke or Bolt Counting
| Technical Specifications | |
|---|---|
| Min Torque - Ft Lbs | 9.3 |
| Max Torque - Ft Lbs | 18.5 |
| Min Torque - Nm | 12.5 |
| Max Torque - Nm | 25 |
| Clutch Type | Auto Shut Off |
| Style | Pistol;"Drive Size=3/8'' square |
| Free Speed - rpm | 4800 |
| Type | Pulse Tool |
| MPN | UDP-TA55 (B) |
