Product information
Overview

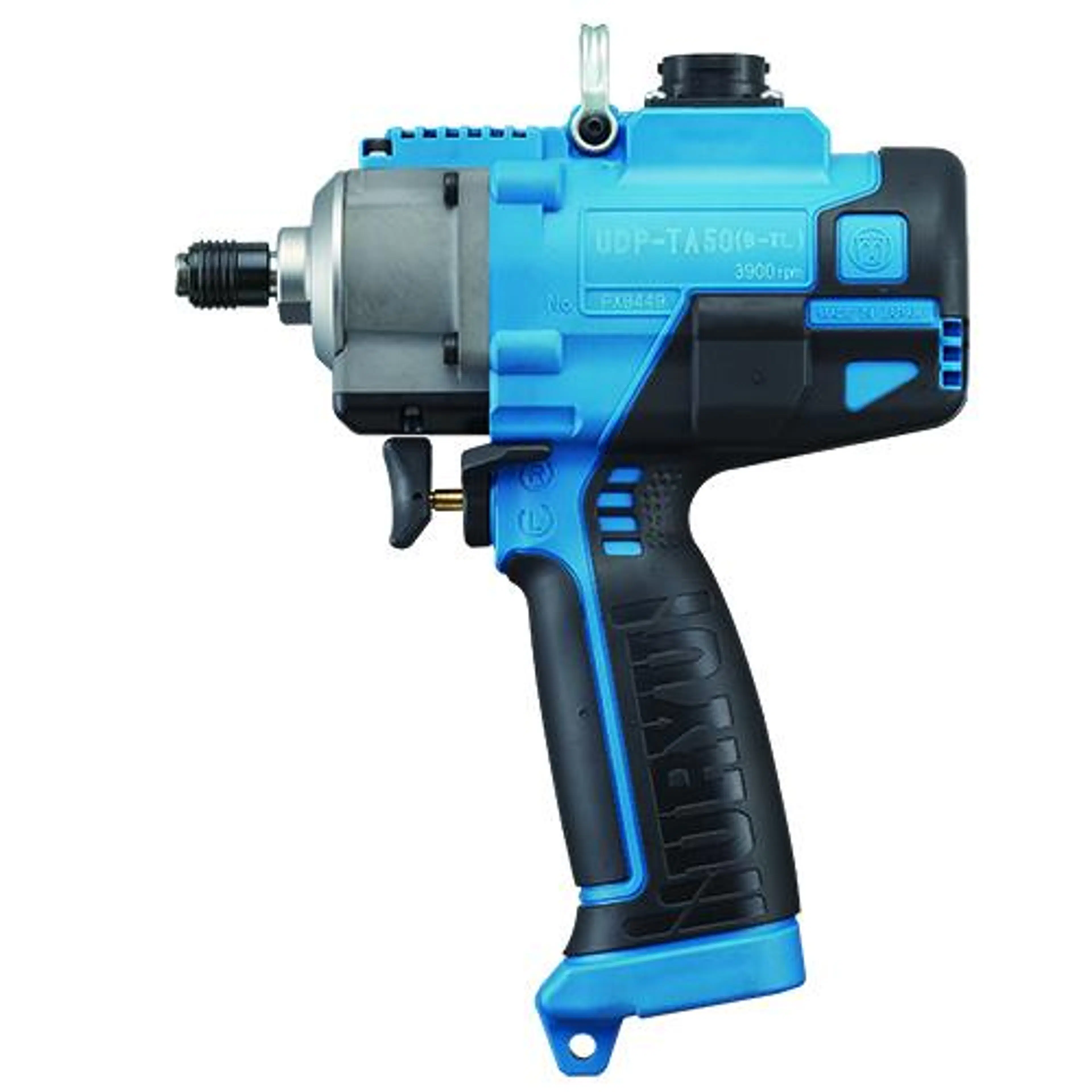

AIMCO Pistol Grip Auto Shut Off Pulse Tool, 4.5 - 8 Nm, 1/4 in. hex drive
Pistol Grip Auto Shut Off Pulse Tool, 4.5 - 8 Nm, 1/4 in. hex drive, model# UDP-TA40D (B-TL) by AIMCO; available to order from Flexible Assembly Systems. Do you see this Pulse Tool available elsewhere for a lower price? Contact customer service on price matching!
UDP-TA40D (B-TL) by AIMCO
The next-generation cordless pulse tool combines industry-leading pulse technology with Lithium-Ion battery power.
Features:
- Uryu Direct Battery Pulse (UDBP) design connects the pulse unit directly to the motor — no reduction gearing — resulting in a tool with less noise and vibration
- Brushless Internal Permanent Magnet (IPM) motor provides longer motor life and more efficiency allowing more fastening cycles per battery charge
- Auto Relief Technology provides additional control to the application of torque during the pulsing events
- On board LEDs for application illumination
- Li-Ion battery provides more power and ends the "battery memory" issues of NiCd batteries
- Tool/battery combination is 27% lighter than earlier UBP tools
- RF Types transmit "good" signal to receiver (sold separately) over 426 Mhz
- “Good” signal can be used for Poka-Yoke or Bolt Counting
| Technical Specifications | |
|---|---|
| Min Torque - Ft Lbs | 3.3 |
| Max Torque - Ft Lbs | 5.9 |
| Min Torque - Nm | 4.5 |
| Max Torque - Nm | 8 |
| Clutch Type | Auto Shut Off |
| Style | Pistol;"Drive Size=1/4'' hex |
| Free Speed - rpm | 3300 |
| Type | Pulse Tool |
| MPN | UDP-TA40D (B-TL) |
