Mark-10 Force/Torque Sensors

Designed for measuring tension and compression force in virtually every industry. Mark-10's R01 sensors have a durable S-Beam design with threaded holes on two sides allows for many configurations.

Features & Benefits

• Member of the Plug & Test family of interchangeable sensors and indicators
• Measures tensile and compressive forces
• NIST-traceable certificate of calibration with data is included.
• 3 Year Warranty

Ideal for heavy duty applications with space constraints, Mark-10's R02 Button sensors can handle compressive loads of up to 10,000 lbF / 50 kN.

Features & Benefits

• Member of the Plug & Test family of interchangeable sensors and indicators
• Small size Stainless steel construction
• NIST-traceable certificate of calibration with data is included.
• 3 Year Warranty

Designed for tension and compression measurement applications in any industry. Mark-10's R03 Series sensors have threaded holes on two sides that can accept a variety of hooks and implements; perffect for inline tests. Sensor capacities range from 0.25 to 100 lbF / 1 to 500 N.

Features & Benefits

• Measures tensile and compressive forces
• Member of the Plug & Test family of interchangeable sensors and indicators
• Rugged aluminum housing
• NIST-traceable certificate of calibration with data is included.

Extremely compact force measurement sensors for tensile and compressive loads in applications with limited space, available in capacities from 0.25 to 100 lbF /1 to 500 N.

Features & Benefits

• Measures tensile and compressive forces
• Member of the Plug & Test family of interchangeable sensors and indicators
• Ultra-compact size
• NIST-traceable certificate of calibration with data is included.

Measure bi-directional torque for a wide variety of applications. Contains a chuck for samples up to 1/2" (12.7 mm) diameter, depending on capacity.

Features & Benefits

• Member of the Plug & Test family of interchangeable sensors and indicators
• Rugged aluminum housing
• NIST-traceable certificate of calibration with data is included.
• 3 Year Warranty

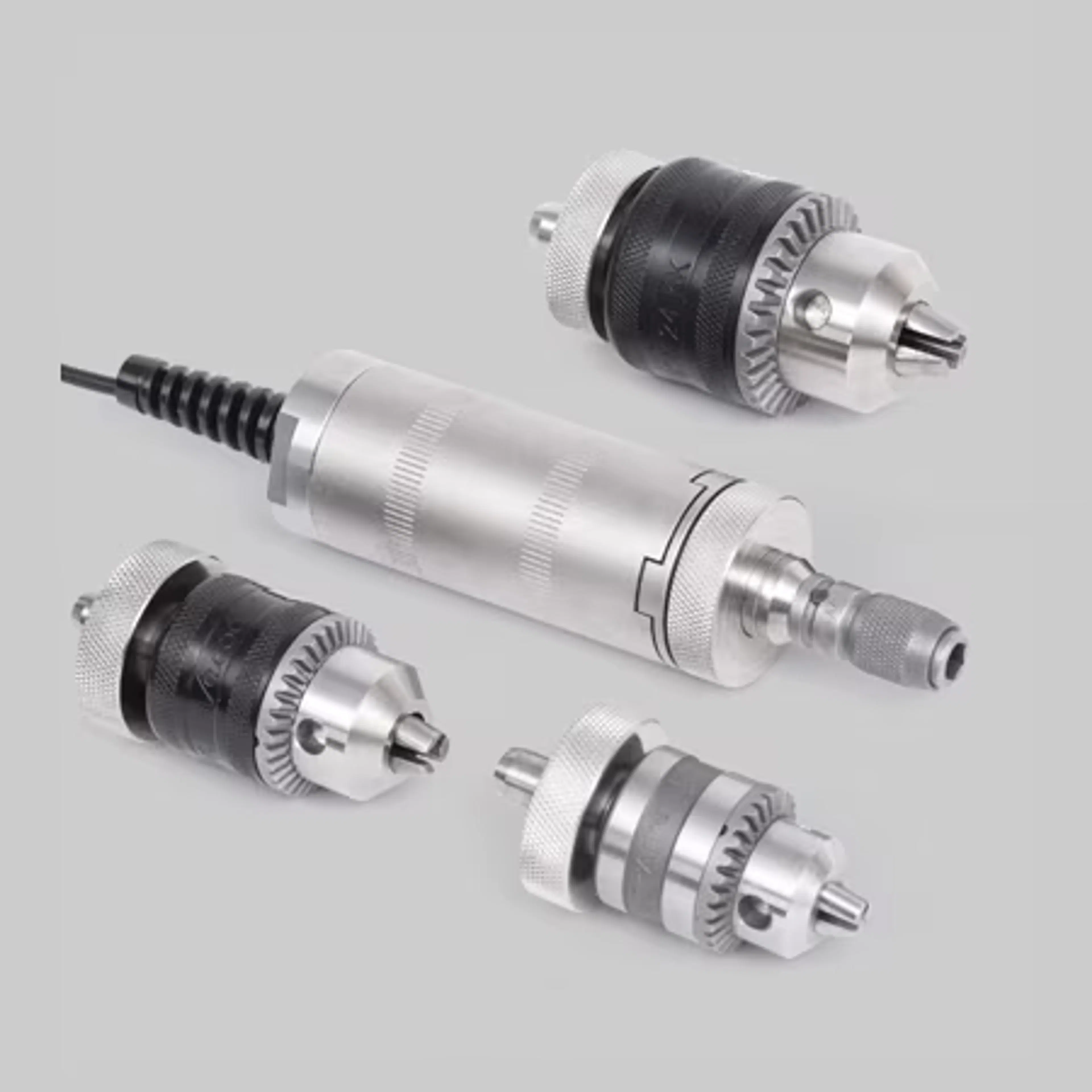

Perfect for bi-directional torque testing that need different sample sizes. These sensors capacities can range from 10 ozFin to 100 lbFin / 7 to 1,150 Ncm

Features & Benefits

• Member of the Plug & Test family of interchangeable sensors and indicators
• Outstanding overload protection
• Interchangeable chucks, sold separately
• NIST-traceable certificate of calibration with data is included.

Calibrate torque tools with this torque measurement sensor, or use it as a component of a torque testing system.

Features & Benefits

• Member of the Plug & Test family of interchangeable sensors and indicators
• Rugged aluminum housing
• Universal mounting
• May be used for torque tool calibration or as a component of a torque testing system

Ideal for a wide range of torque testing applications in numerous industries. Square drives on both ends permit inline use with a torque wrench, or for use in OEM and other applications. Ranges available up to 5,000 lbFin /550 Nm

Features & Benefits

• Member of the Plug & Test family of interchangeable sensors and indicators
• Rugged cylindrical design
• Square drives on each end
• Stainless steel and aluminum construction

Series FS05 force sensors measure tension and compression forces. They mount directly to the crosshead of models F105, F305, F505, and F505H test frames, for a clean, integrated look.

Features & Benefits

• Mount directly to crosshead of models F105, F305, F505, and F505H without any connection cables
• Member of the Plug & Test® family of interchangeable sensors and indicators (adapter required)
• NIST-traceable certificate of calibration with data is included
• 3 Year Warranty

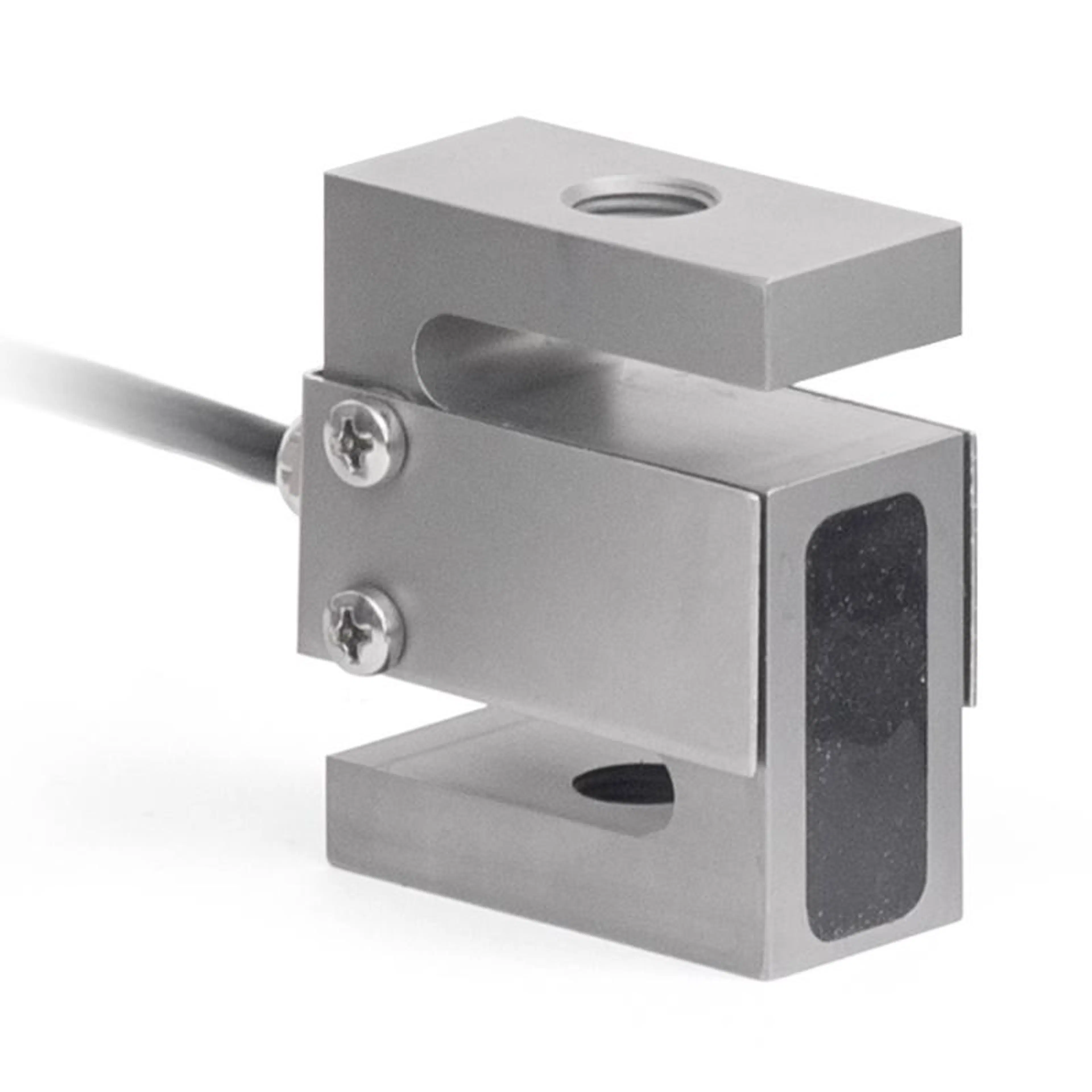

Designed for Mark-10's F series test frames, Series MR07 force sensors measure tension and compression forces. Capacities range from 50 - 1500 lbF / 250 N - 7.5 kN

Features & Benefits

• Compatible with Models F755, F755S, F1505, and F1505S test frames
• Member of the Plug & Test family of interchangeable sensors and indicators
• NIST-traceable certificate of calibration with data is included.
• 3 Year Warranty
