53.0 - 114.0 In Lb, Auto Shut-Off

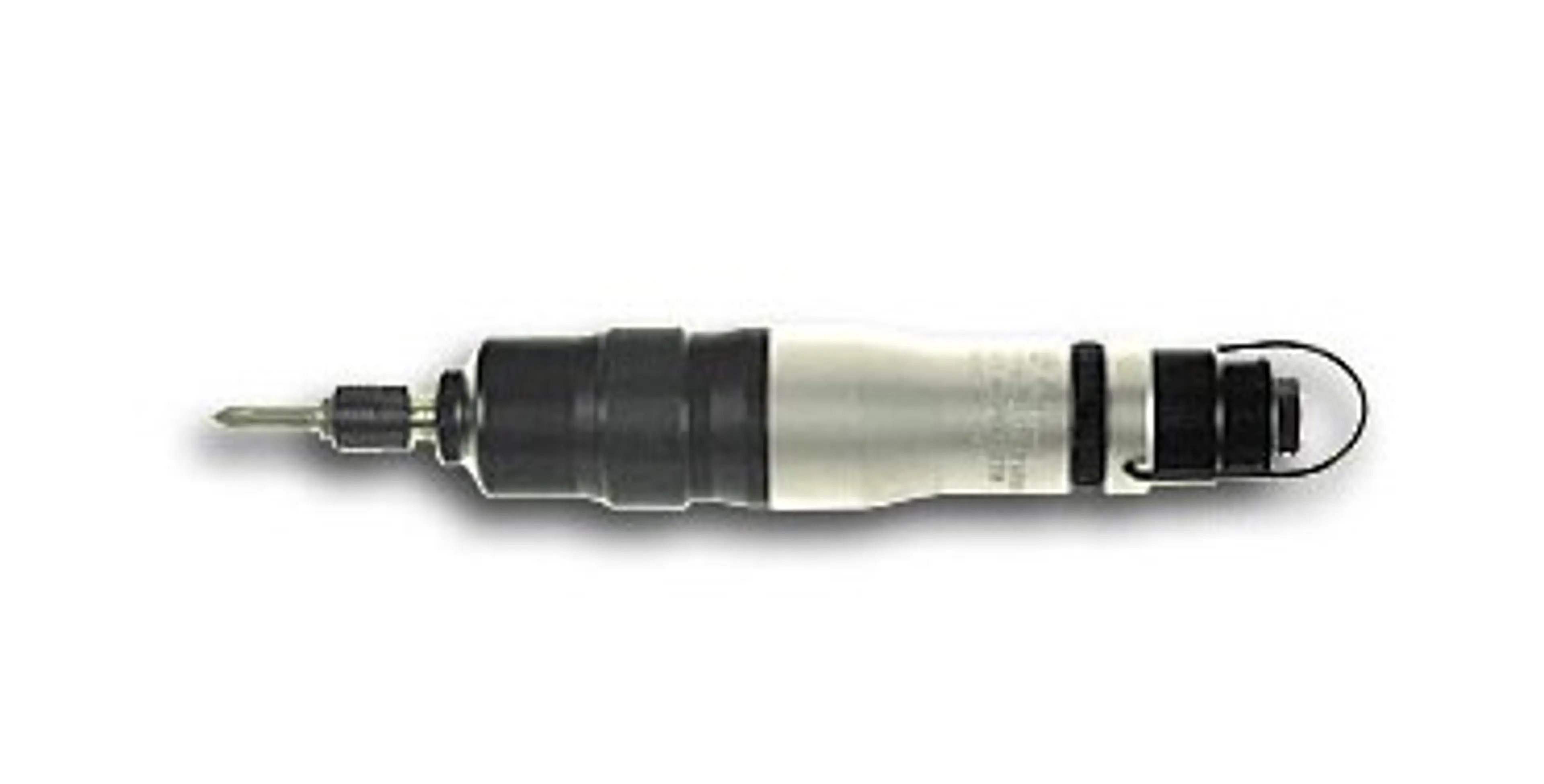

AIMCO URYU ALPHA-T47SPD

53.0 - 114.0 In Lb, Auto Shut-Off

Specifications:
Air Inlet Thread: 1/4 in
Free Speed: 5300 Rpm
Noise Level: 71 dB(A)
Overall Length: 9.5 in
Torque Range: 4.4 - 9.5 Ft-lbs Torque Range: 6.0 - 13.0 Nm
Weight: 1.9 lbs
Drive: 1/4 in

Features:

• Shut off mechanism instantly signals cycle completion to operator
• Extremely accurate on properly designed joints
• Excellent clamp force repeatability
• High speed rundown, reduces fastening time
• Ergonomic benefits reduce fatigue and increase productivity
• Fast rundown reduces operator exposure
• Low vibration and sound levels due to absence of metal-to-metal contact
• Anti-vibration jacket handle provides comfortable operator handling
• Virtually no reaction impulse during and after fastener rundown
• Designed to minimize torque spike on hard joint applications or where tool weight or application access is a concern
• Provides increased power under load with the 9-blade double-chamber motor and patented double-blade pulse mechanism
• Includes 1/4" Hex quick-change chuck
• One hand operation frees the other for productive use
• Quick and easy forward and reverse operation with single-hand reverse lever
• High power to weight ratio
• Exhaust silencer with combined one-piece air inlet bushing
• Quick and easy forward and reverse operation with single-hand reverse lever
• In-line tool style prevents improper wrist extension
• No mechanical clutch or hard part engagement for low maintenance and longer life
• No air line lubrication with oil-free rotor blades
• Built-in torque adjuster matches each application for required torque and fastening time
• Torque adjustment on outside of tool
• Monitoring available for process verification
• No oil film on finished work piece with oil-free rotor blades
• Recommended Air Pressure: 85 psi
