Datasensing95B081010

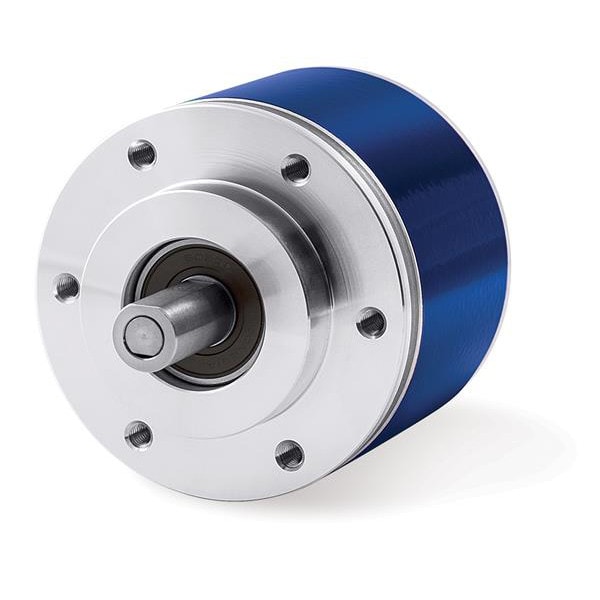

AST58-S10-13x01-M23 | Absolute singleturn - shaft 10mm -SSI 13 bit - M23
AST58 is the absolute encoder single-turn standard industrial line, recommended for its price/performance ratio, high resolution and accuracy for advanced applications. The typical applications for this encoder can be found in motion control, automated machinery, conveyor lines.
$389.57List $664.04
Save $274.47Total$389.57Taxes & shipping at checkout
Quantity
1
- Free UPS Ground over $999.99
- Factory-authorised service
95B081010 | AST58-S10-13x01-M23 | Absolute singleturn - shaft 10mm -SSI 13 bit - M23AST58-S10-13x01-M23
Total$389.57
1
Details
Product information
Overview
Datalogic AST58-S10-13x01-M23 / 95B081010
Absolute singleturn - shaft 10mm -SSI 13 bit - M23
AST58 is the absolute encoder single-turn standard industrial line, recommended for its price/performance ratio, high resolution and accuracy for advanced applications. The typical applications for this encoder can be found in motion control, automated machinery, conveyor lines.
Features:
- Aluminium anticorodal metal case Ø58 mm
- Solid shaft Ø6 or 10 mm, hollow shaft Ø15 mm
- Reducing sleeves to 6, 8, 9.52, 10, 11, 12 mm
- Single-turn resolution 13 bit (up to 8192 cpr)
- M12, M23, or 1.5m cable connection
- Gray SSI® tree output signal
- Power supply 7.5 ?û 34 Vdc
Applications:
- Motion control
- Conveyor lines
- Automated machinery
| Technical Specifications | |
|---|---|
| Resolution | 13 bit / 8192 cpr |
| Sensitivity Adjustment | n/a |
| Shaft Diameter | 10 mm |
| Encoder Type | Absolute singleturn |
| Output Interface | Gray SSI RS422 |
| Response Time | n/a |
| Operating Voltage | 7.5-34 VDC |
| Emission | n/a |
| Dimensions | Ø 58 x 52 mm |
| Connection Type | M23 |
| Housing Material | Metal - Aluminium |
| MPN | AST58-S10-13x01-M23 |
