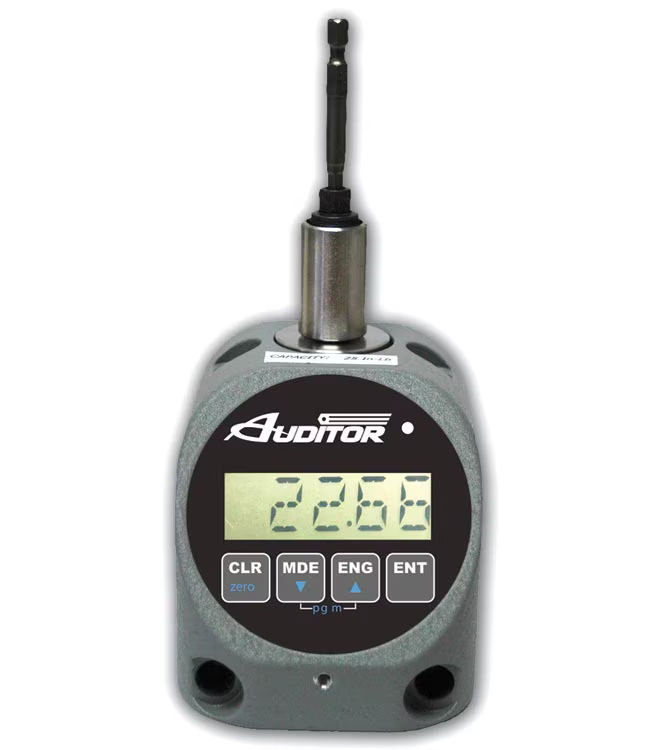

ATC Torque Cube
The Auditor Torque Cube (ATC) is a compact, versatile desktop tester and provides a multitude of capabilities.
One series, several modelsPick the model that fits your job.Models in this series differ in size, capacity or configuration. Browse them on this page, or call us and we'll match one to your application.Each model is sold and priced individually.
Models Available
4 itemsOther models in the same range, from NetSuite's Models Available list. Each is a separate product with its own SKU and price, so they can be added to the order.
| Product | Model | Sq Drive - in | Price | Qty | |
|---|---|---|---|---|---|
 ATC-100ATC-100 | Portable torque tester, 100 in lbs / 11.3 Nm, 1/4'' square$2,332.75 | ATC-100 | 1/4 | $2,332.75 | 1 | View details |
| ATC-25ATC-25 | Portable torque tester, 25 in lbs / 2.82 Nm, 1/4'' square$2,332.75 | ATC-25 | 1/4 | $2,332.75 | 1 | View details |
| ATC-250ATC-250 | Portable torque tester, 250 in lbs / 28.25 Nm, 3/8'' square$2,332.75 | ATC-250 | 3/8 | $2,332.75 | 1 | View details |
| ATC-500ATC-500 | Portable torque tester, 500 in lbs / 56 Nm, 3/8'' square$2,332.75 | ATC-500 | 3/8 | $2,332.75 | 1 | View details |
Details
Product information
Overview
Features:
- The “CUBE” is a great entry level tester that packs many features into a small portable package
- Versatile mounting design makes testing of pistol or inline tools simple
- Bevel washer joint kits allow for precise simulation of the application joint characteristics
- Simple, easy-to-use portable tester
- Intuitive Auditor Series menu structure for quick start-up
- Bidirectional accuracy of ±1% of indicated reading within top 90% of full scale
- Eight (8) available engineering units: oz-in, lb-in, lb-ft, Nm, cNm, kgf-cm, gf-cm, kgf-m
- 3 modes of operation: Track, Peak and 1st Peak
- Selectable power tool filtering speeds: 125Hz, 250Hz, 500Hz, 1000Hz and 1500Hz
- RS-232 output
- NiMh rechargeable batteries provide at least 8-10 hours of continuous use
- For testing power tools, click, dial and digital wrenches
| Features & Benefits | |
|---|---|
| Peak, first peak and track modes | |
| Bi-directional use and accuracy | |
| Multiple engineering units | |
| shipped with a charger power cord, hex-allen drive, and bolting template | |
| Peak | |
| first peak and track modes | |
| shipped with a charger power cord | |
| hex-allen drive | |
| and bolting template |
