Atlas Copco8421 0108 09

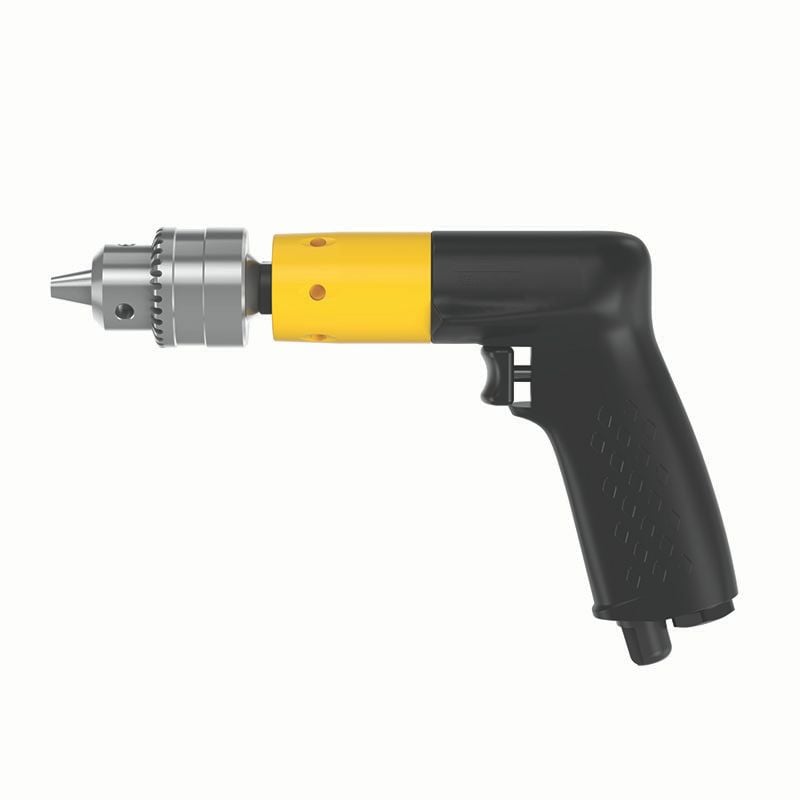

LBB16 EPX-005-U, Pistol Grip Drill, 500 rpm, 0.45 hp, without chuck
8421 0108 09 | LBB16 EPX-005-U, Pistol Grip Drill, 500 rpm, 0.45 hp, without chuck
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
8421 0108 09 | LBB16 EPX-005-U, Pistol Grip Drill, 500 rpm, 0.45 hp, without chuck8421 0108 09
Price on request
Details
Product information
Overview
Atlas Copco 8421 0108 09
Atlas Copco Drills, 1.5 Weight Lbs, 500 Free Speed, 20 Air Consumption
Weight : 1.5lbsFree Speed: 500
Max Air Consumption (cfm): 20
Application: For use in factory processing atmospheres.
| Technical Specifications | |
|---|---|
| airinletthread | 1/4 in |
| diameter | 34 mm |
| distancecentertoside | 16.5 mm |
| e | 27 mm |
| frontlength | 47 mm |
| height | 131 mm |
| length | 154 mm |
| rechosesize | 6.3 mm |
| threadsize | UNF 3/8' - 24 |
| weight | 1.24 lb |
| fronttype | External thread |
| modeltype | Pistol |
| stalltorque | 25.2 Nm |
| freespeed | 500 r/min |
| airconsumptionatfreespeed | 9.5 l/s |
| maxworkingpressure | 100 psig |
| soundpower | 93 dB(A) |
| soundpressure | 82 dB(A) |
| soundstandard | ISO15744 |
| sounduncertainty | 3 dB(A) |
| vibrationstandard | ISO28927-5 |
| vibrationvalue | <2.5 m/s² |
| eaccertified | Yes |
| eulegislation | 2006/42/EC (MD) |
| eustandard | ISO 11148-3 |
| ukregulations | S.I. 2008/1597 |
| ukstandard | ISO 11148-3 |
| power | 340 W |
| MPN | 8421 0108 09 |
