Atlas Copco8421 0110 00

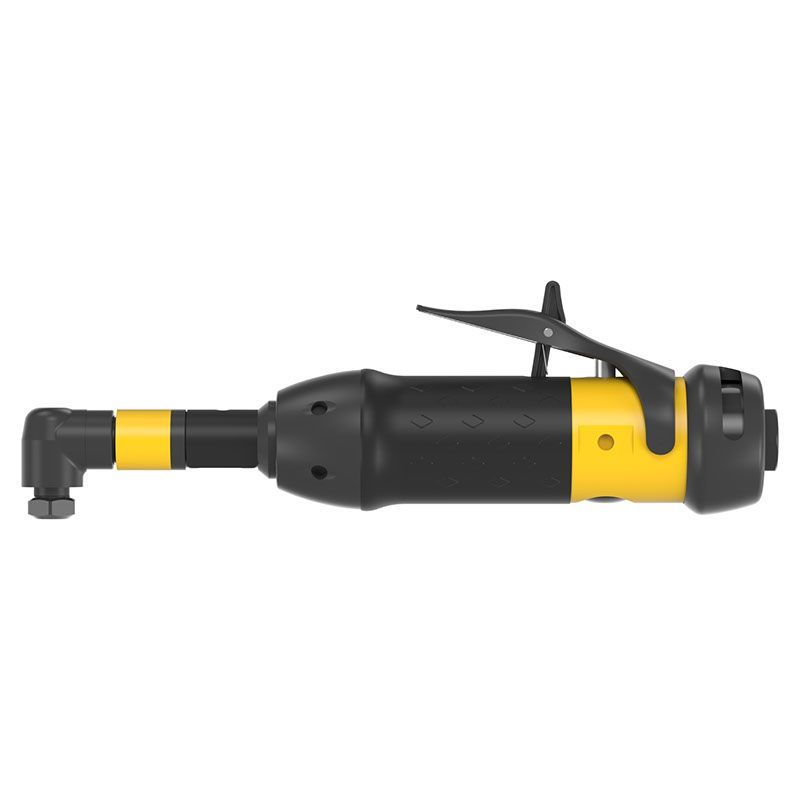

LBV16 032-90 | 13/64'' Angle Drill, 90 deg. head, 3200 rpm, 13/64'' chuck
8421 0110 00 | LBV16 032-90 | 13/64'' Angle Drill, 90 deg. head, 3200 rpm, 13/64'' chuck
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
8421 0110 00 | LBV16 032-90 | 13/64'' Angle Drill, 90 deg. head, 3200 rpm, 13/64'' chuckLBV16 032-90
Price on request
Details
Product information
Overview
Atlas Copco 8421 0110 00
Drills, 1.1 Weight Lbs, 3200 Rpm, 18.4 Cfm
Weight : 1.1lbsFree Speed: 3200
Max Air Consumption (cfm): 18.4
Application: For use in factory processing atmospheres.
| Technical Specifications | |
|---|---|
| airinletthread | 1/4 in |
| colletsize | 5 mm |
| deliveredcolletsize | 3.3 mm |
| diameter | 17 mm |
| frontlength | 110 mm |
| headheight | 31 mm |
| height | 42 mm |
| length | 248 mm |
| rechosesize | 6.3 mm |
| threadsize | UNF 9/32' - 40 |
| weight | 1.1 lb |
| headangle | 90° |
| headtype | Standard |
| fronttype | Threaded collet |
| modeltype | Angle |
| freespeed | 3200 r/min |
| settingrangemax | 3200 r/min |
| settingrangemin | 1500 r/min |
| airconsumptionatfreespeed | 8.7 l/s |
| maxworkingpressure | 100 psig |
| soundpressure | 75 dB(A) |
| soundstandard | ISO15744 |
| sounduncertainty | 3 dB(A) |
| vibrationstandard | ISO28927-5 |
| vibrationvalue | <2.5 m/s² |
| eaccertified | Yes |
| eulegislation | 2006/42/EC (MD) |
| eustandard | ISO 11148-3 |
| ukregulations | S.I. 2008/1597 |
| ukstandard | ISO 11148-3 |
| power | 300 W |
| MPN | LBV16 032-90 |
| Features & Benefits | |
| Very low noise level | |
| Low air consumption | |
| Lube Free | |
| 90 deg. angle head | |
| Very low noise level,Low air consumption,Lube Free,90 deg. angle head | |
