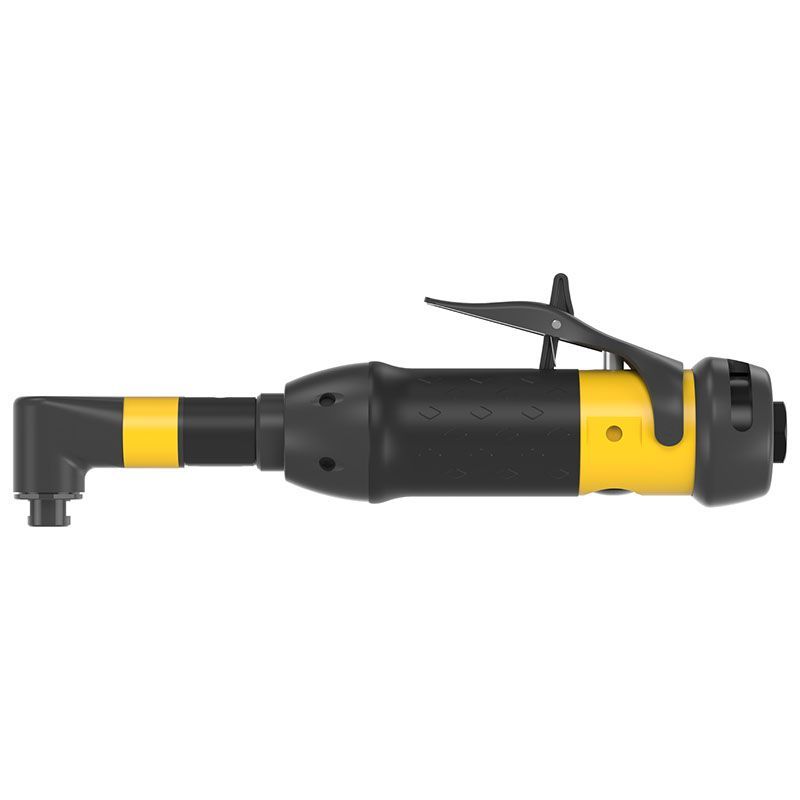

LBV16 045-91 | 1/4'' Angle Drill, 90 deg. Large head, 4500 rpm, 1/4'' chuck
8421 0110 38 | LBV16 045-91 | 1/4'' Angle Drill, 90 deg. Large head, 4500 rpm, 1/4'' chuck
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
8421 0110 38 | LBV16 045-91 | 1/4'' Angle Drill, 90 deg. Large head, 4500 rpm, 1/4'' chuckLBV16 045-91
Price on request
Details
Product information
Overview
Atlas Copco 8421 0110 38
Drills, 1.2 Weight Lbs, 4500 Rpm, 18.4 Cfm
Weight : 1.2lbsFree Speed: 4500
Max Air Consumption (cfm): 18.4
Application: For use in factory processing atmospheres.
| Technical Specifications | |
|---|---|
| airinletthread | 1/4 in |
| colletsize | 6.6 mm |
| deliveredcolletsize | 6 mm |
| diameter | 20 mm |
| frontlength | 110 mm |
| headheight | 39 mm |
| height | 42 mm |
| length | 248 mm |
| rechosesize | 6.3 mm |
| weight | 1.2 lb |
| headangle | 90° |
| headtype | Standard |
| fronttype | Collet |
| modeltype | Angle |
| freespeed | 4500 r/min |
| settingrangemax | 4500 r/min |
| settingrangemin | 3200 r/min |
| airconsumptionatfreespeed | 8.7 l/s |
| maxworkingpressure | 100 psig |
| soundpressure | 75 dB(A) |
| soundstandard | ISO15744 |
| sounduncertainty | 3 dB(A) |
| vibrationstandard | ISO28927-5 |
| vibrationvalue | <2.5 m/s² |
| eaccertified | Yes |
| eulegislation | 2006/42/EC (MD) |
| eustandard | ISO 11148-3 |
| ukregulations | S.I. 2008/1597 |
| ukstandard | ISO 11148-3 |
| power | 300 W |
| MPN | LBV16 045-91 |
| Features & Benefits | |
| Very low noise level | |
| Low air consumption | |
| Lube Free | |
| 90 deg. large angle head | |
| Very low noise level,Low air consumption,Lube Free,90 deg. large angle head | |
