Atlas Copco8421 0122 45

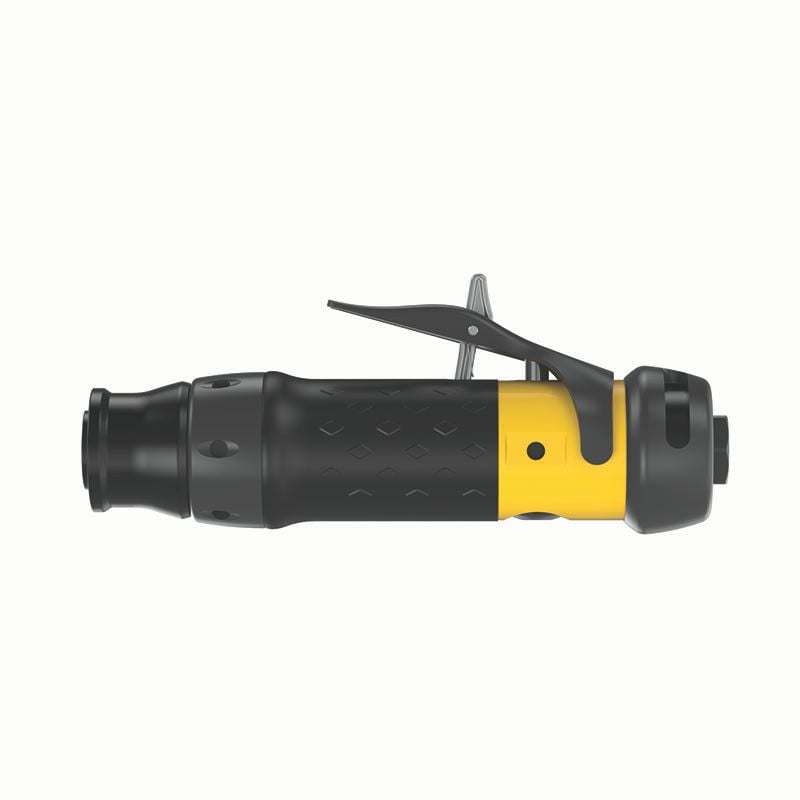

LBD16M-045 | Inline Modular Drill, 0.4 hp, 4500 rpm
A lightweight tool with a powerful air motor combined with interchangeable angle heads equals excellent flexibility in any handheld drilling operation.
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
8421 0122 45 | LBD16M-045 | Inline Modular Drill, 0.4 hp, 4500 rpmLBD16M-045
Price on request
Details
Product information
Overview
Atlas Copco 8421 0122 45
Drills, 1 Weight Lbs, 4500 Rpm, 18.4 Cfm
Weight : 1lbsFree Speed: 4500
Max Air Consumption (cfm): 18.4
Application: For use in factory processing atmospheres.
| Technical Specifications | |
|---|---|
| airinletthread | 1/4 in |
| diameter | 39 mm |
| frontlength | 18 mm |
| height | 42 mm |
| length | 160 mm |
| rechosesize | 6.3 mm |
| weight | 1 lb |
| fronttype | Modular |
| modeltype | Straight |
| freespeed | 4500 r/min |
| airconsumptionatfreespeed | 8.7 l/s |
| maxworkingpressure | 100 psig |
| soundpressure | 75 dB(A) |
| soundstandard | ISO15744 |
| sounduncertainty | 3 dB(A) |
| vibrationstandard | ISO28927-5 |
| vibrationvalue | <2.5 m/s² |
| eaccertified | Yes |
| eulegislation | 2006/42/EC (MD) |
| eustandard | ISO 11148-3 |
| ukregulations | S.I. 2008/1597 |
| ukstandard | ISO 11148-3 |
| power | 300 W |
| MPN | LBD16M-045 |
| Features & Benefits | |
| Quick Change System | |
| Indexable head | |
| High power lube free motor | |
