Atlas Copco8421 0220 40

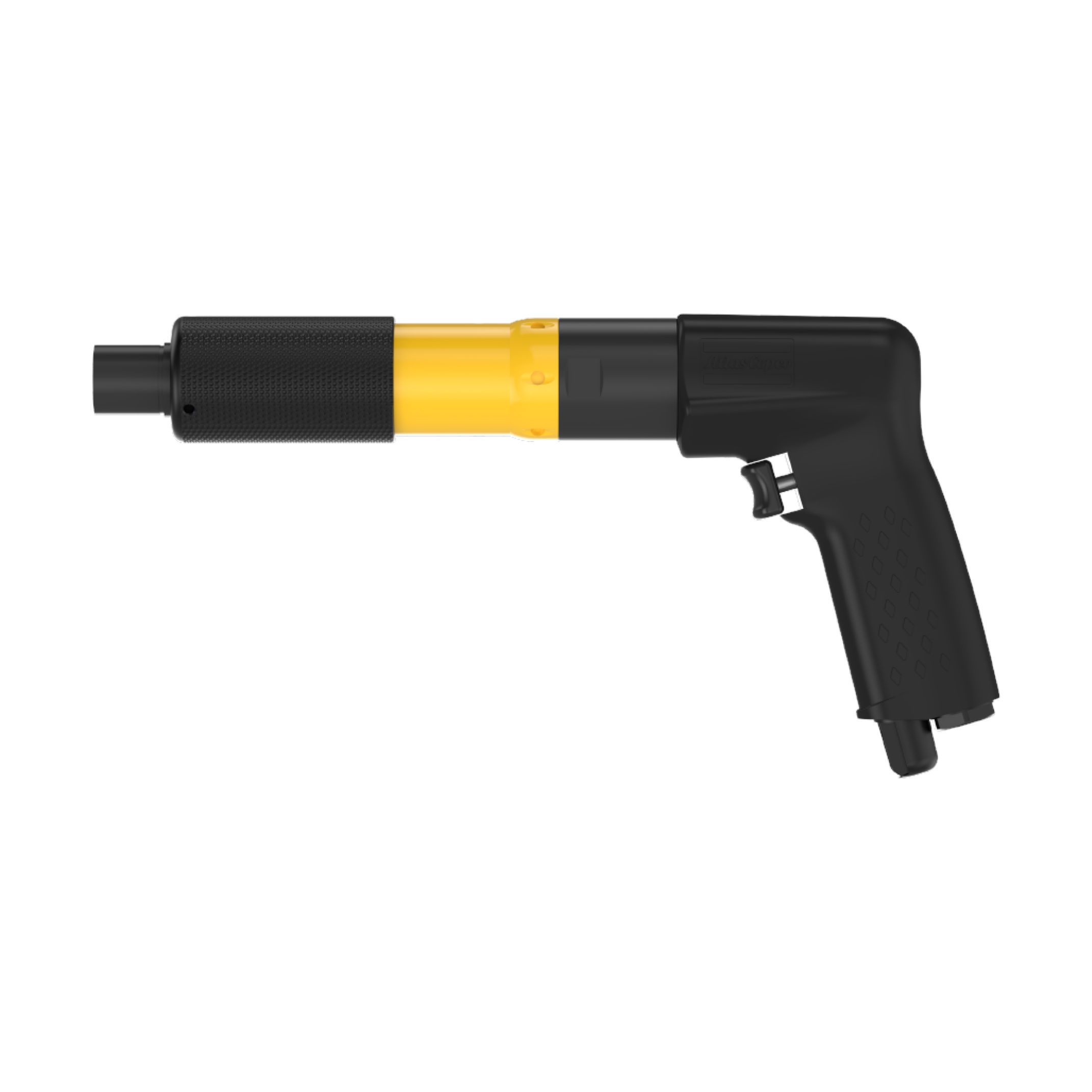

LBS26 H033-40 | Pistol Grip Modular Drill, 3300 rpm
Equipped with an integrated micro stop. Ideal for the aerospace industry where the focus is on high-precision drilling, reaming and countersinking.
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
8421 0220 40 | LBS26 H033-40 | Pistol Grip Modular Drill, 3300 rpmLBS26 H033-40
Price on request
Details
Product information
Overview
Atlas Copco 8421 0220 40
Drills, 2 Weight Lbs, 3300 Rpm, 31.8 Cfm
Weight : 2lbsFree Speed: 3300
Max Air Consumption (cfm): 31.8
Application: For use in factory processing atmospheres.
| Technical Specifications | |
|---|---|
| airinletthread | 3/8 in |
| diameter | 40 mm |
| frontlength | 70 mm |
| height | 146 mm |
| length | 254 mm |
| rechosesize | 10 mm |
| settingrange | 6 mm |
| stroke | 40 mm |
| threadsize | UNF 1/4' - 28 1B |
| weight | 2 lb |
| fronttype | Internal thread |
| freespeed | 3300 r/min |
| airconsumptionatfreespeed | 14.5 l/s |
| maxworkingpressure | 100 psig |
| soundpower | 92 dB(A) |
| soundpressure | 81 dB(A) |
| soundstandard | ISO15744 |
| sounduncertainty | 3 dB(A) |
| vibrationstandard | ISO28927-5 |
| vibrationvalue | <2.5 m/s² |
| eaccertified | Yes |
| eulegislation | 2006/42/EC (MD) |
| eustandard | ISO 11148-3 |
| ukregulations | S.I. 2008/1597 |
| ukstandard | ISO 11148-3 |
| MPN | LBS26 H033-40 |
| Features & Benefits | |
| High Accuracy | |
| Ergonomic design | |
| Can be used for drilling, reaming, countersinking and, in certain applications, a combined operation using a form bit | |
| Lubrication-free for a clean working environment | |
| Can be used for drilling | |
| reaming | |
| countersinking and | |
| in certain applications | |
| a combined operation using a form bit | |
