Atlas Copco8421 0309 04

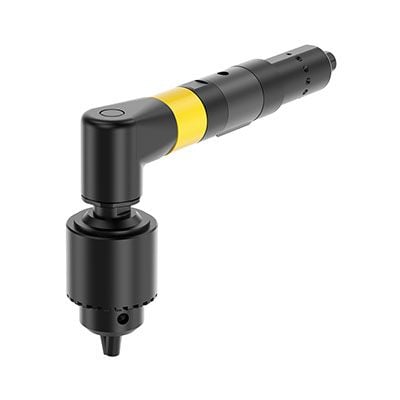

LBV34 S005 | 1/2'' Angle Drill, 90 deg. Large head, 500 rpm, 1/2'' chuck
8421 0309 04 | LBV34 S005 | 1/2'' Angle Drill, 90 deg. Large head, 500 rpm, 1/2'' chuck
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
8421 0309 04 | LBV34 S005 | 1/2'' Angle Drill, 90 deg. Large head, 500 rpm, 1/2'' chuckLBV34 S005
Price on request
Details
Product information
Overview
Atlas Copco 8421 0309 04
Drills, 4.6 Weight Lbs, 500 Rpm, 15.9 Cfm
Weight : 4.6lbsFree Speed: 500
Max Air Consumption (cfm): 15.9
Application: For use in factory processing atmospheres.
| Technical Specifications | |
|---|---|
| airinletthread | 1/4 in |
| height | 135 mm |
| length | 289 mm |
| rechosesize | 10 mm |
| weight | 4.6 lb |
| headangle | 90° |
| fronttype | Chuck |
| modeltype | Angle |
| freespeed | 500 r/min |
| airconsumptionatfreespeed | 11 l/s |
| maxworkingpressure | 100 psig |
| soundpower | 100 dB(A) |
| soundpressure | 89 dB(A) |
| soundstandard | ISO15744 |
| sounduncertainty | 3 dB(A) |
| vibrationstandard | ISO28927-5 |
| vibrationvalue | <2.5 m/s² |
| eaccertified | Yes |
| eulegislation | 2006/42/EC (MD) |
| eustandard | ISO 11148-3 |
| ukregulations | S.I. 2008/1597 |
| ukstandard | ISO 11148-3 |
| power | 400 W |
| MPN | LBV34 S005 |
| Features & Benefits | |
| Very low noise level | |
| Low air consumption | |
| Lube Free | |
| 90 deg. angle head, keyed chuck | |
| Very low noise level,Low air consumption,Lube Free,90 deg. angle head, keyed chuck | |
