Atlas Copco8421 0411 00
LGB36 H007Q | Drills, 4.4 Air Inlet, 3/8 RPM, 34.9 CFM
Designed for tapping and thread-cleaning operations with thread taps. The tools are fitted with a tap chuck as standard.
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
8421 0411 00 | LGB36 H007Q | Drills, 4.4 Air Inlet, 3/8 RPM, 34.9 CFMLGB36 H007Q
Price on request
Details
Product information
Overview

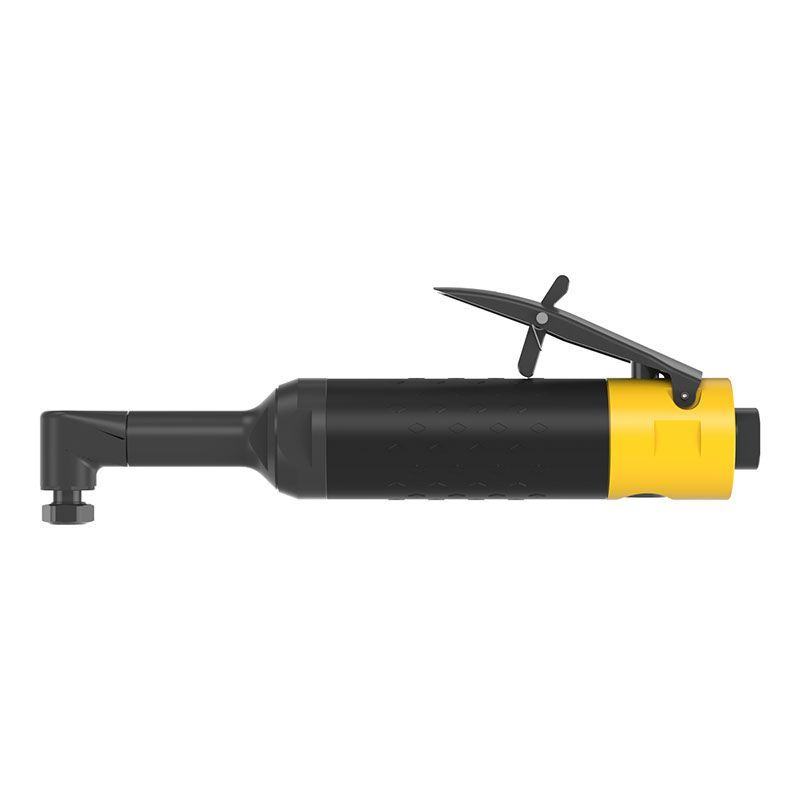

Atlas Copco 8421 0411 00
Drills, 4.4 Air Inlet, 3/8 Rpm, 34.9 Cfm
Weight : 4.4lbsFree Speed: 700
Max Air Consumption (cfm): 34.9
Application: For use in factory processing atmospheres.
| Technical Specifications | |
|---|---|
| airinletthread | 3/8 in |
| diameter | 45 mm |
| frontlength | 127 mm |
| height | 160 mm |
| length | 330 mm |
| rechosesize | 10 mm |
| tappingcapacity | 12 mm |
| weight | 4.4 lb |
| fronttype | Collet |
| freespeedforward | 700 r/min |
| freespeedreverse | 1400 r/min |
| airconsumptionatfreespeed | 16.5 l/s |
| maxworkingpressure | 100 psig |
| soundpower | 93 dB(A) |
| soundpressure | 82 dB(A) |
| soundstandard | ISO15744 |
| sounduncertainty | 3 dB(A) |
| vibrationstandard | ISO20643 |
| vibrationvalue | <2.5 m/s² |
| eaccertified | Yes |
| eulegislation | 2006/42/EC (MD) |
| eustandard | ISO 11148-3 |
| ukregulations | S.I. 2008/1597 |
| ukstandard | ISO 11148-3 |
| MPN | LGB36 H007Q |
| Features & Benefits | |
| High Productivity | |
| Very low noise level | |
| Lubrication-free for a clean working environment | |
| Quick Change System | |
