Atlas Copco8421 0414 50

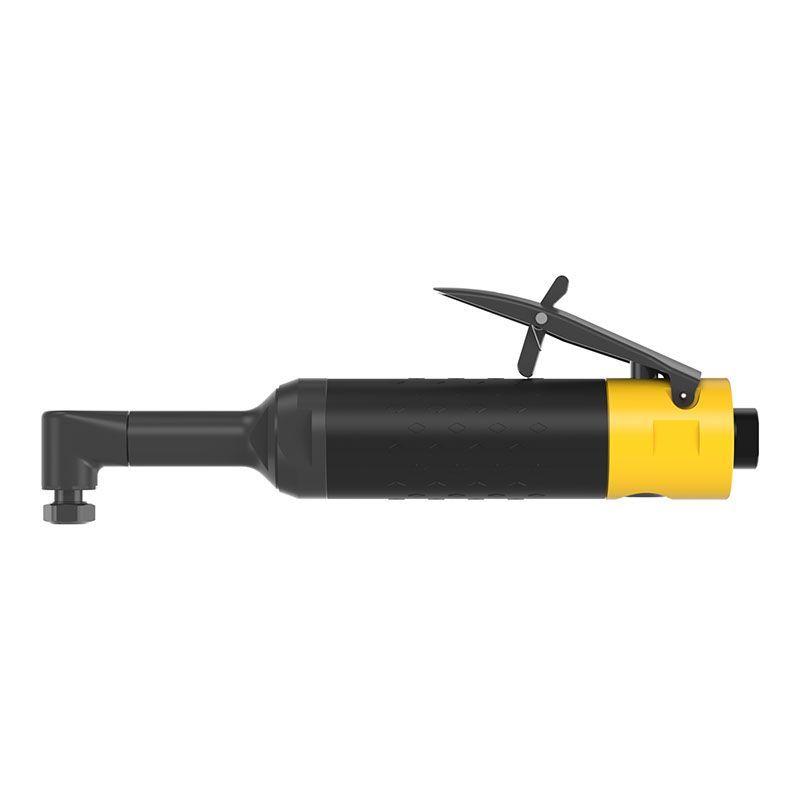

LBV36 S030-91 | 1/4'' Angle Drill, 90 deg. Large head, 3000 rpm, 1/4'' chuck
8421 0414 50 | LBV36 S030-91 | 1/4'' Angle Drill, 90 deg. Large head, 3000 rpm, 1/4'' chuck
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
8421 0414 50 | LBV36 S030-91 | 1/4'' Angle Drill, 90 deg. Large head, 3000 rpm, 1/4'' chuckLBV36 S030-91
Price on request
Details
Product information
Overview
Atlas Copco 8421 0414 50
Drills, 2.2 Weight Lbs, 3000 Rpm, 36 Cfm
Weight : 2.2lbsFree Speed: 3000
Max Air Consumption (cfm): 36
Application: For use in factory processing atmospheres.
| Technical Specifications | |
|---|---|
| airinletthread | 1/4 in |
| colletsize | 6.6 mm |
| deliveredcolletsize | 6 mm |
| diameter | 20 mm |
| frontlength | 84 mm |
| headheight | 40 mm |
| height | 43 mm |
| length | 252 mm |
| rechosesize | 10 mm |
| weight | 2.2 lb |
| headangle | 90° |
| headtype | Standard |
| fronttype | Collet |
| modeltype | Angle |
| freespeed | 3000 r/min |
| airconsumptionatfreespeed | 17 l/s |
| maxworkingpressure | 100 psig |
| soundpower | 92 dB(A) |
| soundpressure | 81 dB(A) |
| soundstandard | ISO15744 |
| sounduncertainty | 3 dB(A) |
| vibrationstandard | ISO28927-5 |
| vibrationvalue | <2.5 m/s² |
| eaccertified | Yes |
| eulegislation | 2006/42/EC (MD) |
| eustandard | ISO 11148-3 |
| ukregulations | S.I. 2008/1597 |
| ukstandard | ISO 11148-3 |
| power | 510 W |
| MPN | LBV36 S030-91 |
| Features & Benefits | |
| Very low noise level | |
| Low air consumption | |
| Lube Free | |
| 90 deg. large angle head | |
| Very low noise level,Low air consumption,Lube Free,90 deg. large angle head | |
