Atlas Copco8423 0125 30

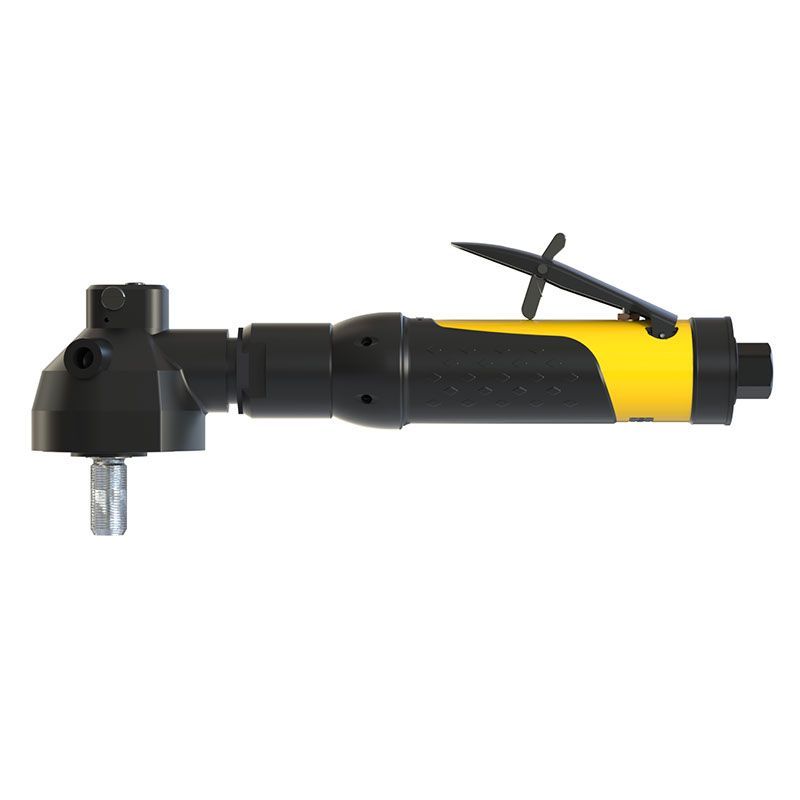

LSV28 S060 | Angle Sander, 0.98 hp, 6000 rpm
Pneumatic Angle Sander LSV29 is a small yet powerful sander that comes with an insulated grip and in various speed.
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
8423 0125 30 | LSV28 S060 | Angle Sander, 0.98 hp, 6000 rpmLSV28 S060
Price on request
Details
Product information
Overview
Atlas Copco 8423 0125 30
Atlas Copco Angle Sander, 0.98 Hp, 6000 Rpm
Max Ouput (hp): 0.98Free Speed (RPM): 6000
Spindle Thread: UNC 5/8"x32
Max Pad Diameter: 180
Weight (lbs): 3.2
Max Air Consumption (cfm): 33.9
Air Inlet (NPT): 3/8
Application: For use in factory processing atmospheres.
| Technical Specifications | |
|---|---|
| airinletthreadbsp | 3/8 in |
| height | 93 mm |
| heightoverspindle | 86 mm |
| length | 268 mm |
| maxpaddia | 180 mm |
| rechosesize | 10 mm |
| spindlelength | 32 mm |
| spindlethread | 5/8-11 UNC |
| weight | 3.3 lb |
| autobalancer | No |
| modeltype | Angle |
| motortype | Vane |
| supporthandleincluded | Yes |
| maxfreespeed | 6000 r/min |
| airconsumptionatfreespeed | 7.3 l/s |
| airconsumptionatmaxoutput | 16 l/s |
| maxworkingpressure | 90 psig |
| soundpressure | 77 dB(A) |
| soundstandard | ISO15744 |
| sounduncertainty | 3 dB(A) |
| vibrationstandard | ISO28927-3 |
| vibrationvalue | <2.5 m/s² |
| eaccertified | Yes |
| eulegislation | 2006/42/EC |
| eustandard | ISO 11148-8 |
| ukregulations | S.I. 2008/1597 |
| ukstandard | ISO 11148-8 |
| maxoutput | 0.73 kW |
| lubricationfree | Yes |
| MPN | LSV28 S060 |
| Features & Benefits | |
| High power even at low speed | |
| Optimal process speed | |
| Integrated speed governor | |
| Great operator comfort | |
