Atlas Copco8423 0126 26

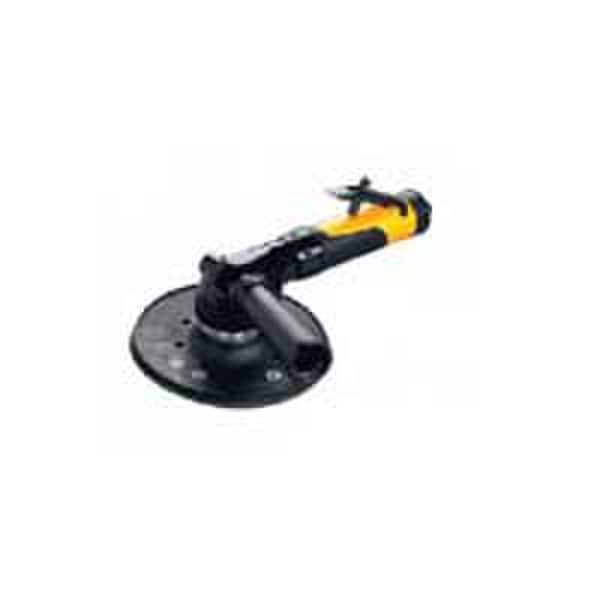

LSV28 ST013-LF | Angle Sander, 0.91 hp, 1300 rpm
Pneumatic Angle Polishing Sander LSV29 is a small yet powerful sander that improves working conditions and gives better sanding results with minimum maintenance.
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
8423 0126 26 | LSV28 ST013-LF | Angle Sander, 0.91 hp, 1300 rpmLSV28 ST013-LF
Price on request
Details
Product information
Overview
Atlas Copco 8423 0126 26
Atlas Copco Angle Sander, 0.91 Hp, 1300 Rpm
Max Ouput (hp): 0.91Free Speed (RPM): 1300
Spindle Thread: UNC 5/8"x32
Max Pad Diameter: 180
Weight (lbs): 3.7
Max Air Consumption (cfm): 42.4
Air Inlet (NPT): 3/8
Application: For use in factory processing atmospheres.
| Technical Specifications | |
|---|---|
| airinletthreadbsp | 3/8 in |
| height | 93 mm |
| heightoverspindle | 86 mm |
| length | 289 mm |
| maxpaddia | 180 mm |
| rechosesize | 10 mm |
| spindlelength | 32 mm |
| spindlethread | 5/8-11 UNC |
| weight | 3.7 lb |
| autobalancer | No |
| modeltype | Angle |
| motortype | Vane |
| supporthandleincluded | Yes |
| maxfreespeed | 1300 r/min |
| airconsumptionatfreespeed | 9 l/s |
| airconsumptionatmaxoutput | 20 l/s |
| maxworkingpressure | 90 psig |
| soundpressure | 77 dB(A) |
| soundstandard | ISO15744 |
| sounduncertainty | 3 dB(A) |
| vibrationstandard | ISO28927-3 |
| vibrationvalue | <2.5 m/s² |
| eaccertified | Yes |
| eulegislation | 2006/42/EC |
| eustandard | ISO 11148-8 |
| ukregulations | S.I. 2008/1597 |
| ukstandard | ISO 11148-8 |
| maxoutput | 0.68 kW |
| lubricationfree | Yes |
| MPN | LSV28 ST013-LF |
| Features & Benefits | |
| High torque for optimal performance | |
| Lubrication free air motor | |
| Sealed angle head | |
