Atlas Copco8423 0132 00

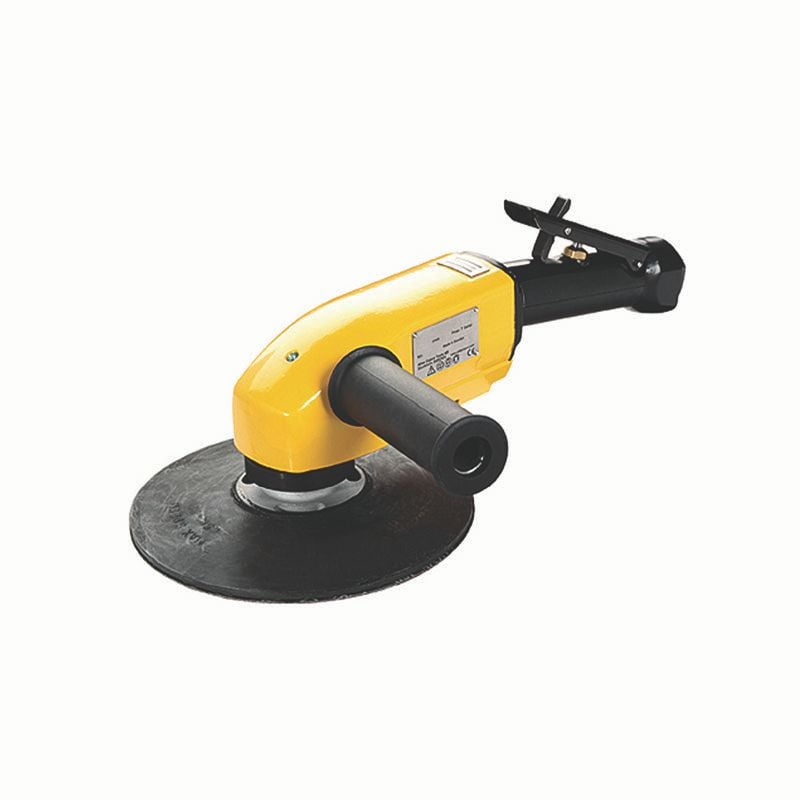

LSV48 SA066 | Angle grinder, 2.5 hp, 6600 rpm
Angle Pneumatic Sander LSV48 is suitable for rough sanding when more power is needed.
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
8423 0132 00 | LSV48 SA066 | Angle grinder, 2.5 hp, 6600 rpmLSV48 SA066
Price on request
Details
Product information
Overview
Atlas Copco 8423 0132 00
Atlas Copco Angle Grinder, 2.5 Hp, 6600 Rpm
Max Ouput (hp): 2.5Free Speed (RPM): 6600
Weight (lbs): 5.1
Max Air Consumption (cfm): 76
Air Inlet (NPT): 1/2
Application: For use in factory processing atmospheres.
| Technical Specifications | |
|---|---|
| airinletthreadbsp | 1/2 in |
| height | 101 mm |
| heightoverspindle | 87 mm |
| length | 316 mm |
| maxpaddia | 180 mm |
| rechosesize | 16 mm |
| spindlelength | 24 mm |
| spindlethread | 5/8-11 UNC |
| weight | 5.1 lb |
| autobalancer | Yes |
| modeltype | Angle |
| motortype | Vane |
| supporthandleincluded | Yes |
| maxfreespeed | 6600 r/min |
| airconsumptionatfreespeed | 17 l/s |
| airconsumptionatmaxoutput | 36 l/s |
| maxworkingpressure | 100 psig |
| soundpower | 100 dB(A) |
| soundpressure | 89 dB(A) |
| soundstandard | ISO15744 |
| sounduncertainty | 3 dB(A) |
| vibrationstandard | ISO28927-3 |
| vibrationvalue | <2.5 m/s² |
| eaccertified | Yes |
| eulegislation | 2006/42/EC |
| eustandard | ISO 11148-8 |
| ukregulations | S.I. 2008/1597 |
| ukstandard | ISO 11148-8 |
| maxoutput | 1.9 kW |
| lubricationfree | Yes |
| MPN | LSV48 SA066 |
| Features & Benefits | |
| Integrated autobalancer and speed governor | |
| High level of operator safety and comfort | |
| Lubrication free air motor | |
| Optimized process speed and productivity | |
