Atlas Copco8423 0132 06

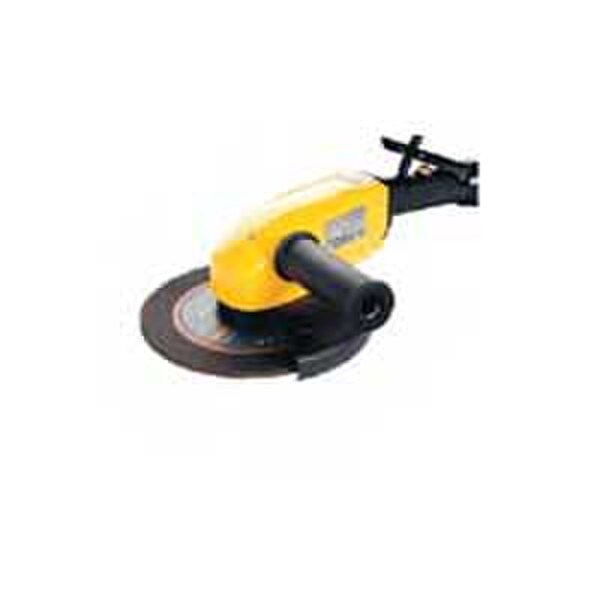

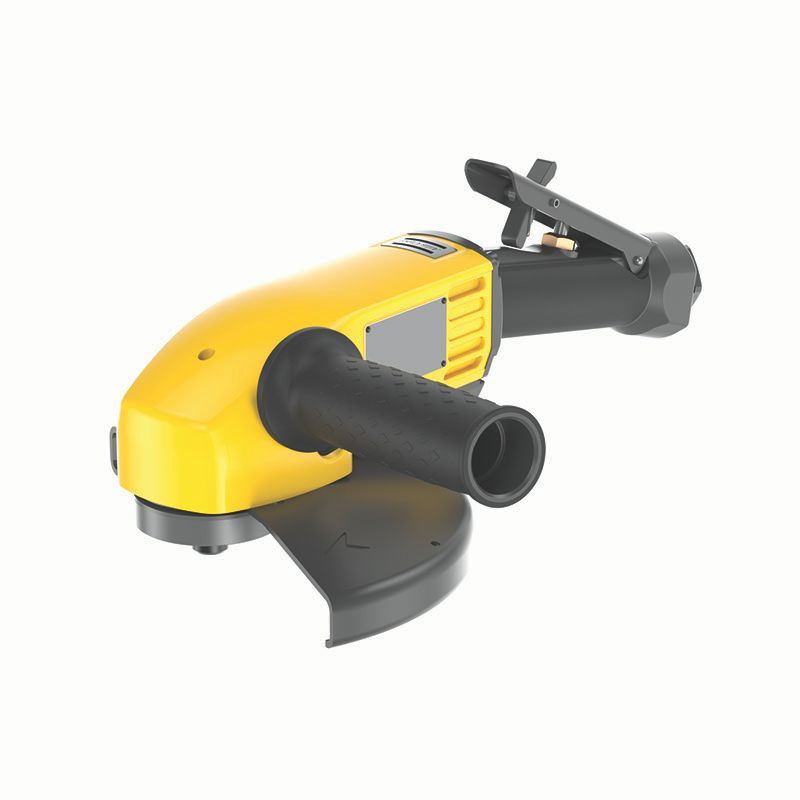

Angle grinder, 2.5 hp, 8500 rpm
8423 0132 06 | Atlas Copco Angle grinder, 2.5 hp, 8500 rpm
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
8423 0132 06 | Atlas Copco Angle grinder, 2.5 hp, 8500 rpm8423 0132 06
Price on request
Details
Product information
Overview
Atlas Copco 8423 0132 06
Atlas Copco Angle Grinder, 2.5 Hp, 8500 Rpm
Max Ouput (hp): 2.5Free Speed (RPM): 8500
Weight (lbs): 5.9
Max Air Consumption (cfm): 76
Air Inlet (NPT): 1/2
Application: For use in factory processing atmospheres.
| Technical Specifications | |
|---|---|
| airinletthreadbsp | 1/2 in |
| height | 91 mm |
| heightoverspindle | 75 mm |
| length | 316 mm |
| maxwheeldia | 180 mm |
| rechosesize | 16 mm |
| spindlelength | 13 mm |
| spindlethread | M14 |
| weight | 5.9 lb |
| supporthandleincluded | Yes |
| autobalancer | Yes |
| modeltype | Angle |
| motortype | Vane |
| maxfreespeed | 8500 r/min |
| airconsumptionatfreespeed | 17 l/s |
| airconsumptionatmaxoutput | 36 l/s |
| maxworkingpressure | 100 psig |
| soundpower | 100 dB(A) |
| soundpressure | 89 dB(A) |
| soundstandard | ISO15744 |
| sounduncertainty | 3 dB(A) |
| vibrationstandard | ISO28927-1 |
| vibrationuncertainty | 0.9 m/s² |
| vibrationvalue | 3.9 m/s² |
| eaccertified | Yes |
| eulegislation | 2006/42/EC |
| eustandard | ISO11148-7 |
| ukregulations | S.I. 2008/1597 |
| ukstandard | ISO11148-7 |
| lubricationfree | Yes |
| maxoutput | 1.9 kW |
| MPN | 8423 0132 06 |
