Atlas Copco8423 0360 24

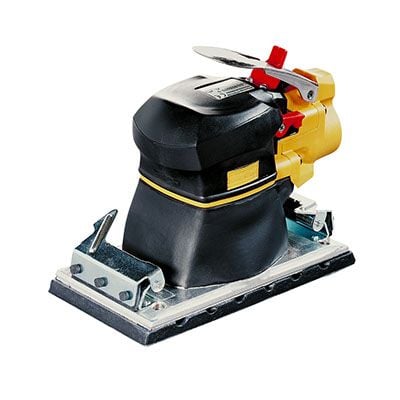

LSO30 H070-3 | Orbital Sander, 0.4 hp, 7000 rpm
The Pneumatic Orbital Sander LSO is made for the best surface results in the shortest possible time before painting and coating. They offer high power output and good ergonomics in rigid, durable designs.
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
8423 0360 24 | LSO30 H070-3 | Orbital Sander, 0.4 hp, 7000 rpmLSO30 H070-3
Price on request
Details
Product information
Overview
Atlas Copco 8423 0360 24
Atlas Copco Orbital Sander, 0.4 Hp, 7000 Rpm
Max Ouput (hp): 0.4Free Speed (RPM): 7000
Max Pad Diameter: 93x170
Weight (lbs): 3.7
Max Air Consumption (cfm): 16
Air Inlet (NPT): 1/4
Application: For use in factory processing atmospheres.
| Technical Specifications | |
|---|---|
| airinletthreadbsp | 1/4 in |
| airinletthreadnpt | 1/4 in |
| heightoverspindle | 125 mm |
| length | 285 mm |
| orbitdia | 5 mm |
| padsize | 93x170 mm |
| rechosesize | 8 mm |
| weight | 3.7 lb |
| dustextraction | No suction |
| modeltype | Vertical |
| motortype | Vane |
| maxfreespeed | 7000 r/min |
| airconsumptionatfreespeed | 7.5 l/s |
| maxworkingpressure | 90 psig |
| soundpower | 92 dB(A) |
| soundpressure | 81 dB(A) |
| soundstandard | ISO15744 |
| sounduncertainty | 3 dB(A) |
| vibrationstandard | ISO28927-3 |
| vibrationuncertainty | 1.6 m/s² |
| vibrationvalue | 11.5 m/s² |
| eaccertified | Yes |
| eulegislation | 2006/42/EC |
| eustandard | EN 792-8 |
| ukregulations | S.I. 2008/1597 |
| ukstandard | EN 792-8 |
| lubricationfree | Yes |
| maxoutput | 0.3 kW |
| MPN | LSO30 H070-3 |
| Features & Benefits | |
| Perfect handling, comfort and control | |
| Lubrication and silicon free | |
| No contamination on the finished surface | |
| Double counter-weight system | |
| Perfect handling | |
| comfort and control | |
