Atlas Copco8423 0361 75

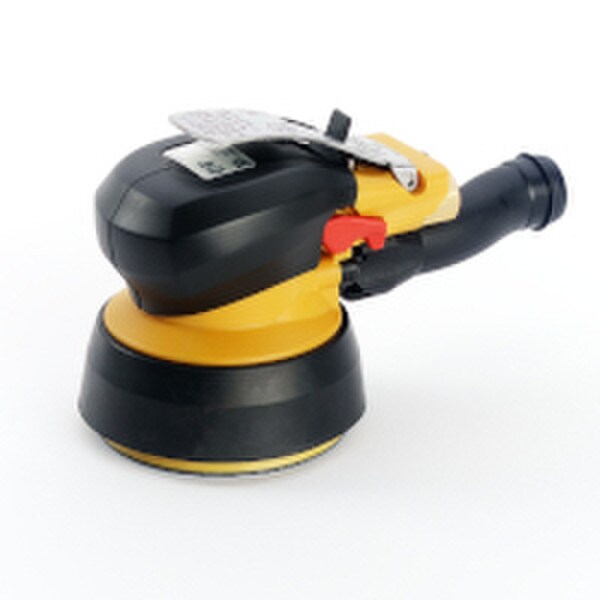

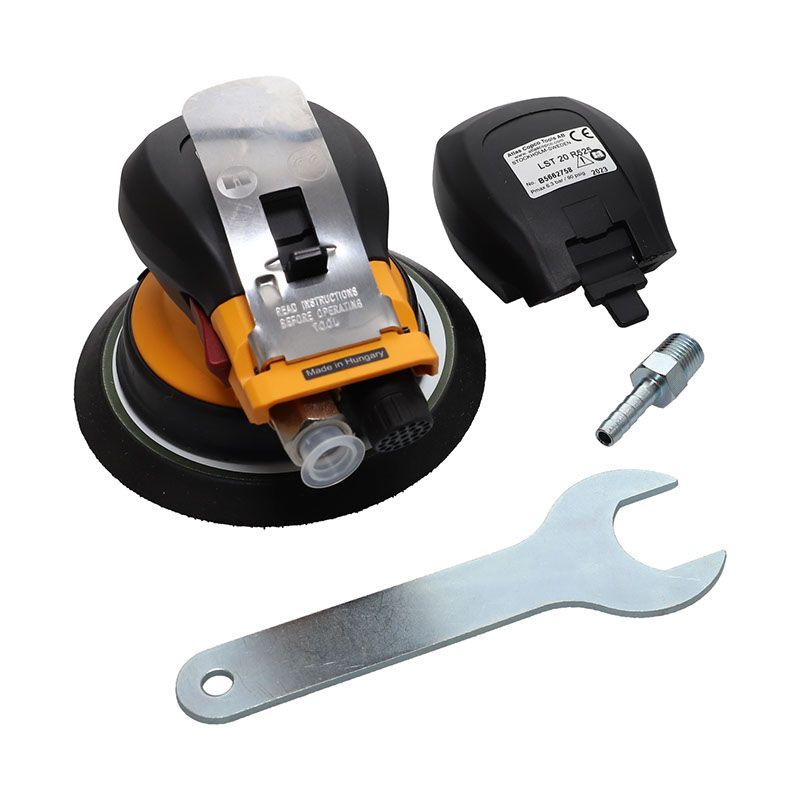

LST22 R650 | Orbital Sander, extraction model, central suction, 0.27 hp, 12000 rpm
The Pneumatic Random Orbital sander LST is small and easily operated, ideal for many applications. It features a double counter-weight system which reduces vibrations.
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
8423 0361 75 | LST22 R650 | Orbital Sander, extraction model, central suction, 0.27 hp, 12000 rpmLST22 R650
Price on request
Details
Product information
Overview
Atlas Copco 8423 0361 75
Atlas Copco Orbital Sander, 0.27 Hp, 12000 Rpm
Max Ouput (hp): 0.27Free Speed (RPM): 12000
Max Pad Diameter: 150
Weight (lbs): 1.85
Max Air Consumption (cfm): 17
Air Inlet (NPT): 1/4
Application: For use in factory processing atmospheres.
| Technical Specifications | |
|---|---|
| heightoverspindle | 84 mm |
| length | 223 mm |
| orbitdia | 5 mm |
| padsize | 150 mm |
| rechosesize | 8 mm |
| spindlethread | 5/16-24 UNF |
| weight | 1.85 lb |
| modeltype | Vertical |
| motortype | Vane |
| maxfreespeed | 12000 r/min |
| airconsumptionatfreespeed | 8 l/s |
| soundpressure | 78 dB(A) |
| soundstandard | ISO15744 |
| sounduncertainty | 3 dB(A) |
| vibrationstandard | ISO28927-3 |
| vibrationuncertainty | 0.9 m/s² |
| vibrationvalue | 3.8 m/s² |
| eaccertified | Yes |
| eulegislation | 2006/42/EC |
| eustandard | ISO 11148-8 |
| ukregulations | S.I. 2008/1597 |
| ukstandard | ISO 11148-8 |
| maxoutput | 0.2 kW |
| MPN | LST22 R650 |
| Features & Benefits | |
| Ergonomic handle for comfort and control | |
| Lubrication and silicon free | |
| No contamination on the finished surface | |
| Adjustable speed and power | |
