Atlas Copco8423 1124 07

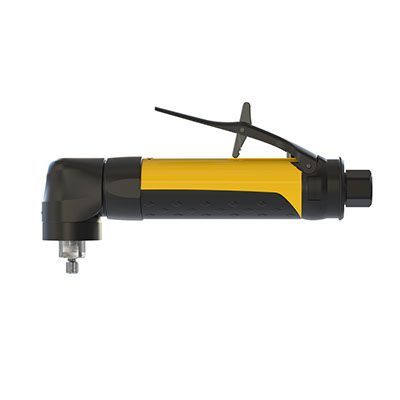

LSV12 S120 | Angle Sander, 0.33 hp, 12000 rpm
The Pneumatic Angle Sander LSV12 is a good choice when you need maximum control in cramped spaces. The sander is suitable for applications with high demands on surface finishing and great accessibility.
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
8423 1124 07 | LSV12 S120 | Angle Sander, 0.33 hp, 12000 rpmLSV12 S120
Price on request
Details
Product information
Overview
Atlas Copco 8423 1124 07
Atlas Copco Angle Sander, 0.33 Hp, 12000 Rpm
Max Ouput (hp): 0.33Free Speed (RPM): 12000
Spindle Thread: UNC 1/4"x8
Max Pad Diameter: 75
Weight (lbs): 1.2
Max Air Consumption (cfm): 17.6
Air Inlet (NPT): 1/4
Application: For use in factory processing atmospheres.
| Technical Specifications | |
|---|---|
| airinletthreadbsp | 1/4 in |
| height | 58 mm |
| heightoverspindle | 58 mm |
| length | 166 mm |
| maxpaddia | 75 mm |
| rechosesize | 8 mm |
| spindlelength | 8 mm |
| spindlethread | 1/4-20 UNC |
| weight | 1.19 lb |
| autobalancer | No |
| modeltype | Angle |
| motortype | Vane |
| supporthandleincluded | No |
| maxfreespeed | 12000 r/min |
| airconsumptionatfreespeed | 3 l/s |
| airconsumptionatmaxoutput | 8.3 l/s |
| maxworkingpressure | 90 psig |
| soundpressure | 75 dB(A) |
| soundstandard | ISO15744 |
| sounduncertainty | 3 dB(A) |
| vibrationstandard | ISO20643 |
| vibrationuncertainty | -- m/s² |
| vibrationvalue | >2.5 m/s² |
| eaccertified | Yes |
| eulegislation | 2006/42/EC |
| eustandard | ISO 11148-8 |
| ukregulations | S.I. 2008/1597 |
| ukstandard | ISO 11148-8 |
| maxoutput | 0.24 kW |
| lubricationfree | No |
| MPN | LSV12 S120 |
| Features & Benefits | |
| Excellent ergonomics with firm, round grip | |
| High productivity | |
| Optimal process speed | |
| Robust gears | |
| Excellent ergonomics with firm | |
| round grip | |
