Atlas Copco8423 1222 03
Inline Die Grinder, High speed, 88000 rpm
8423 1222 03 | Inline Die Grinder, High speed, 88000 rpm
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
8423 1222 03 | Inline Die Grinder, High speed, 88000 rpm8423 1222 03
Price on request
Details
Product information
Overview

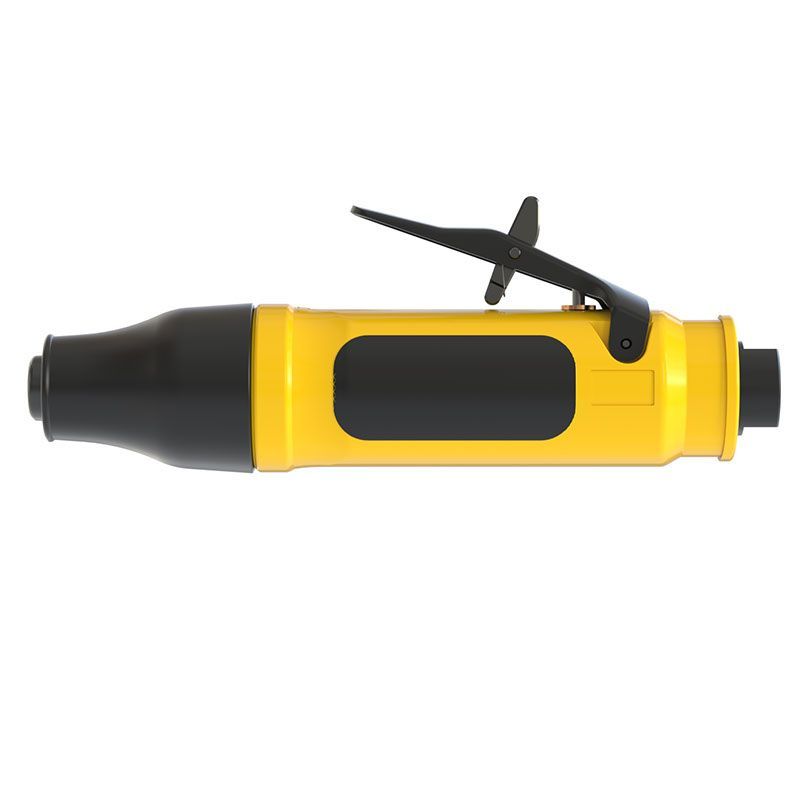

Atlas Copco 8423 1222 03
Atlas Copco Straight Die Grinder, 0.1 Hp, 88000 Rpm
Max Ouput (hp): 0.1Free Speed (RPM): 88000
Weight (lbs): 0.9
Max Air Consumption (cfm): 4.9
Air Inlet (NPT): 3/16
Application: For use in factory processing atmospheres.
| Technical Specifications | |
|---|---|
| colletsize | 3 mm |
| length | 173 mm |
| rechosesize | 4.5 mm |
| weight | 0.9 lb |
| modeltype | Straight |
| motortype | Vane |
| scatterdamped | No |
| maxfreespeed | 88000 r/min |
| airconsumptionatfreespeed | 2.3 l/s |
| airconsumptionatmaxoutput | 2.2 l/s |
| maxworkingpressure | 87 psig |
| soundpower | 86 dB(A) |
| soundpressure | 75 dB(A) |
| soundstandard | ISO15744 |
| sounduncertainty | 3 dB(A) |
| vibrationstandard | ISO28927-12 |
| vibrationuncertainty | - m/s² |
| vibrationvalue | <2.5 m/s² |
| eaccertified | Yes |
| eulegislation | 2006/42/EC |
| eustandard | ISO11148-9 |
| ukregulations | S.I. 2008/1597 |
| ukstandard | ISO11148-9 |
| lubricationfree | No |
| maxoutput | 0.1 kW |
| MPN | 8423 1222 03 |
