Atlas Copco 8423 1224 81

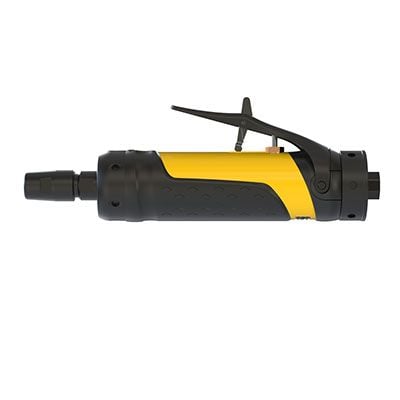

Atlas Copco Straight Die Grinder, 0.67 Hp, 30000 Rpm
Max Ouput (hp): 0.67Free Speed (RPM): 30000
Weight (lbs): 1.1
Max Air Consumption (cfm): 23.7
Air Inlet (NPT): 1/4
Application: For use in factory processing atmospheres.
| Technical Specifications | |
|---|---|
| airinletthreadbsp | 1/4 in |
| colletsize | 6 mm |
| length | 193 mm |
| rechosesize | 10 mm |
| weight | 1.2 lb |
| modeltype | Straight |
| motortype | Vane |
| scatterdamped | Yes |
| maxfreespeed | 30000 r/min |
| airconsumptionatfreespeed | 6.6 l/s |
| airconsumptionatmaxoutput | 11.3 l/s |
| maxworkingpressure | 90 psig |
| soundpressure | 73 dB(A) |
| soundstandard | ISO15744 |
| sounduncertainty | 3 dB(A) |
| vibrationstandard | ISO28927-12 |
| vibrationvalue | <2.5 m/s² |
| eaccertified | Yes |
| eulegislation | 2006/42/EC |
| eustandard | ISO 11148-9 |
| ukregulations | S.I. 2008/1597 |
| ukstandard | ISO 11148-9 |
| lubricationfree | Yes |
| maxoutput | 0.5 kW |
| MPN | 8423 1224 81 |
