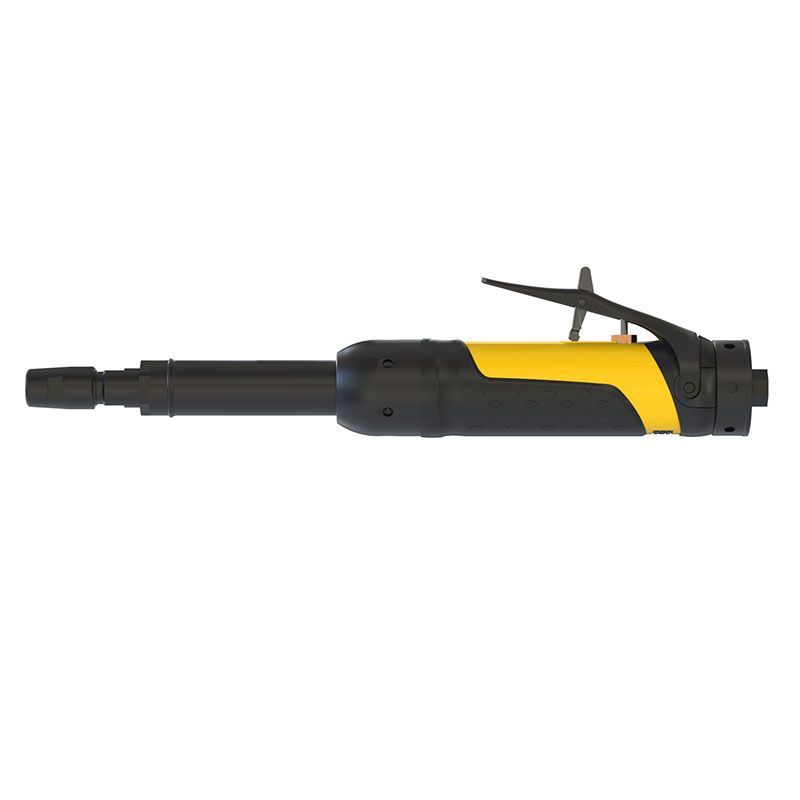

Atlas Copco8423 1224 85
Straight Die grinder, 0.67 hp, 20000 rpm
8423 1224 85 | Atlas Copco Straight Die grinder, 0.67 hp, 20000 rpm
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
8423 1224 85 | Atlas Copco Straight Die grinder, 0.67 hp, 20000 rpm8423 1224 85
Price on request
Details
Product information
Overview
Atlas Copco 8423 1224 85
Atlas Copco Straight Die Grinder, 0.67 Hp, 20000 Rpm
Max Ouput (hp): 0.67Free Speed (RPM): 20000
Weight (lbs): 1.5
Max Air Consumption (cfm): 20.1
Air Inlet (NPT): 1/4
Application: For use in factory processing atmospheres.
| Technical Specifications | |
|---|---|
| airinletthreadbsp | 1/4 in |
| colletsize | 6 mm |
| length | 293 mm |
| rechosesize | 10 mm |
| weight | 1.5 lb |
| modeltype | Straight |
| motortype | Vane |
| scatterdamped | Yes |
| maxfreespeed | 20000 r/min |
| airconsumptionatfreespeed | 3.5 l/s |
| airconsumptionatmaxoutput | 9.6 l/s |
| maxworkingpressure | 90 psig |
| soundpressure | <70 dB(A) |
| soundstandard | ISO15744 |
| vibrationstandard | ISO28927-12 |
| vibrationuncertainty | 1.8 m/s² |
| vibrationvalue | 3.1 m/s² |
| eaccertified | Yes |
| eulegislation | 2006/42/EC |
| eustandard | ISO 11148-9 |
| ukregulations | S.I. 2008/1597 |
| ukstandard | ISO 11148-9 |
| lubricationfree | Yes |
| maxoutput | 0.5 kW |
| MPN | 8423 1224 85 |
