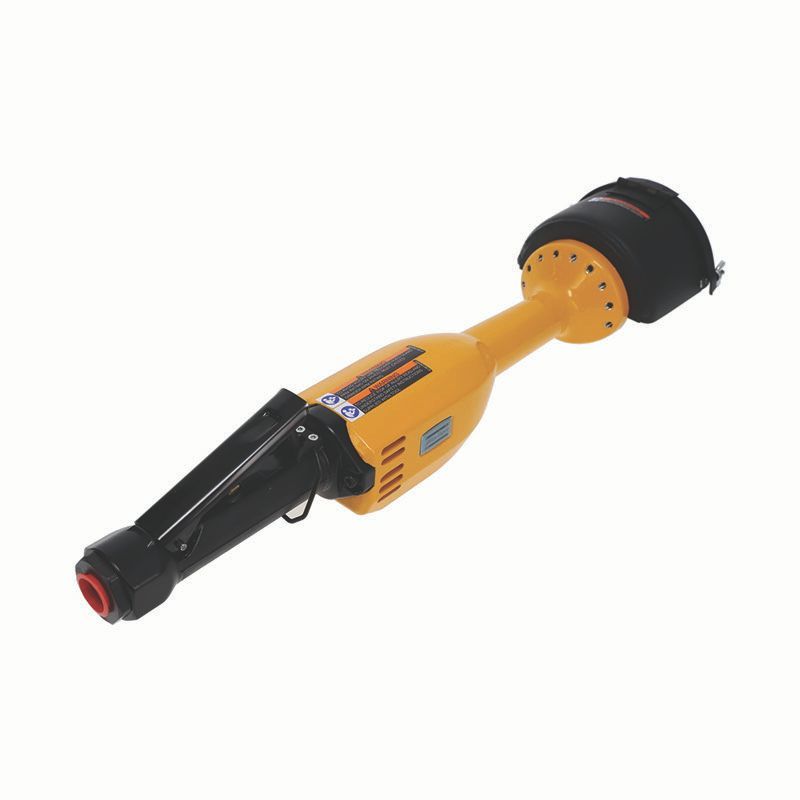

Atlas Copco8423 1430 02
Straight grinder for straight wheels, 2 hp, 9000 rpm
8423 1430 02 | Atlas Copco Straight grinder for straight wheels, 2 hp, 9000 rpm
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
8423 1430 02 | Atlas Copco Straight grinder for straight wheels, 2 hp, 9000 rpm8423 1430 02
Price on request
Details
Product information
Overview
Atlas Copco 8423 1430 02
Atlas Copco Straight Grinder For Straight Wheels, 2 Hp, 9000 Rpm
Max Ouput (hp): 2Free Speed (RPM): 9000
Weight (lbs): 7
Max Air Consumption (cfm): 59
Air Inlet (NPT): 1/3
Application: For use in factory processing atmospheres.
| Technical Specifications | |
|---|---|
| airinletthreadbsp | 1/2 in |
| length | 495 mm |
| maxwheeldia | 100 mm |
| rechosesize | 16 mm |
| spindlelength | 37 mm |
| spindlethread | 1/2-13 UNC |
| weight | 7 lb |
| autobalancer | Yes |
| modeltype | Straight |
| motortype | Vane |
| maxfreespeed | 9000 r/min |
| airconsumptionatfreespeed | 11 l/s |
| airconsumptionatmaxoutput | 28 l/s |
| maxworkingpressure | 100 psig |
| soundpower | 87 dB(A) |
| soundpressure | 76 dB(A) |
| soundstandard | ISO15744 |
| sounduncertainty | 3 dB(A) |
| vibrationstandard | ISO28927-4 |
| vibrationvalue | <2.5 m/s² |
| eaccertified | Yes |
| eulegislation | 2006/42/EC |
| eustandard | ISO 11148-7 |
| ukregulations | S.I. 2008/1597 |
| ukstandard | ISO 11148-7 |
| maxoutput | 1.5 kW |
| lubricationfree | Yes |
| MPN | 8423 1430 02 |
