Atlas Copco8423 1640 30

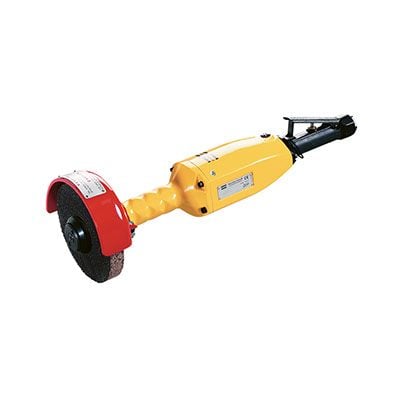

Straight grinder for straight wheels, 3.4 hp, 7200 rpm
8423 1640 30 | Atlas Copco Straight grinder for straight wheels, 3.4 hp, 7200 rpm
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
8423 1640 30 | Atlas Copco Straight grinder for straight wheels, 3.4 hp, 7200 rpm8423 1640 30
Price on request
Details
Product information
Overview
Atlas Copco 8423 1640 30
Atlas Copco Straight Grinder For Straight Wheels, 3.4 Hp, 7200 Rpm
Max Ouput (hp): 3.4Free Speed (RPM): 7200
Weight (lbs): 11.9
Max Air Consumption (cfm): 95
Air Inlet (NPT): 1/2
Application: For use in factory processing atmospheres.
| Technical Specifications | |
|---|---|
| airinletthreadbsp | 1/2 in |
| length | 535 mm |
| maxwheeldia | 125 mm |
| rechosesize | 16 mm |
| spindlelength | 55 mm |
| spindlethread | 5/8-11 UNC |
| weight | 11.9 lb |
| autobalancer | No |
| modeltype | Straight |
| motortype | Vane |
| maxfreespeed | 7200 r/min |
| airconsumptionatfreespeed | 14 l/s |
| airconsumptionatmaxoutput | 45 l/s |
| maxworkingpressure | 100 psig |
| soundpower | 93 dB(A) |
| soundpressure | 82 dB(A) |
| soundstandard | ISO15744 |
| sounduncertainty | 3 dB(A) |
| vibrationstandard | ISO28927-4 |
| vibrationvalue | <2.5 m/s² |
| eaccertified | Yes |
| eulegislation | 2006/42/EC |
| eustandard | EN 792-7 |
| ukregulations | S.I. 2008/1597 |
| ukstandard | EN 792-7 |
| maxoutput | 2.5 kW |
| lubricationfree | No |
| MPN | 8423 1640 30 |
