Atlas Copco8423 2530 23

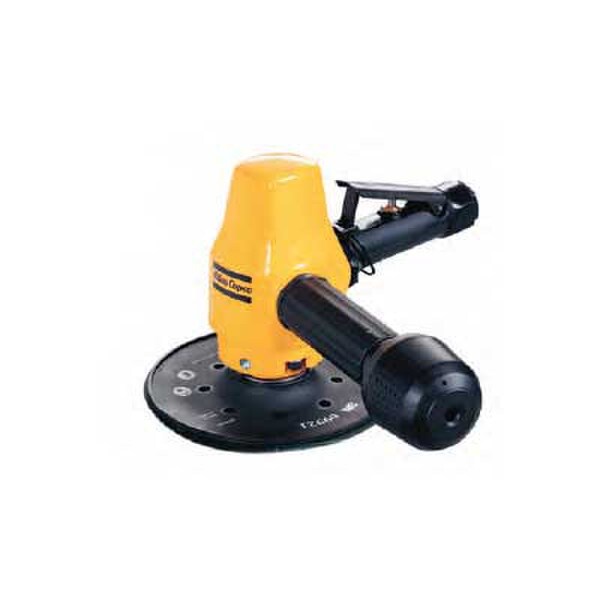

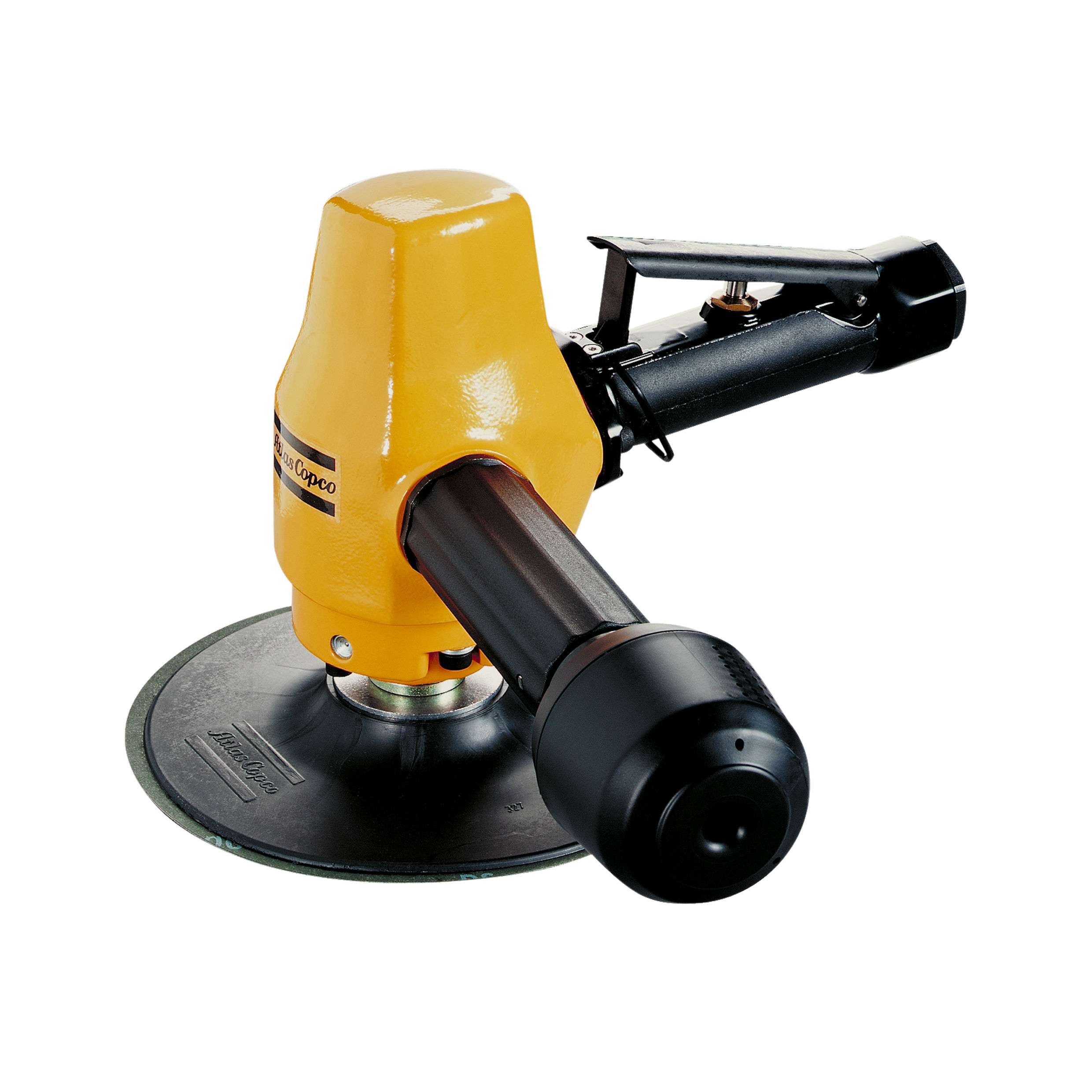

LSS53 S060 | Vertical Sander, 1.6 hp, 6000 rpm
Engineered for heavy use, the Vertical Sander LSS53 is fitted with a robust air motor, which ensures extra-long service life. The tool is equipped with a unique silencer that reduces the sound peaks.
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
8423 2530 23 | LSS53 S060 | Vertical Sander, 1.6 hp, 6000 rpmLSS53 S060
Price on request
Details
Product information
Overview
Atlas Copco 8423 2530 23
Atlas Copco Vertical Sander, 1.6 Hp, 6000 Rpm
Max Ouput (hp): 1.6Free Speed (RPM): 6000
Weight (lbs): 5.1
Max Air Consumption (cfm): 51
Air Inlet (NPT): 1/2
Application: For use in factory processing atmospheres.
| Technical Specifications | |
|---|---|
| airinletthreadbsp | 1/2 in |
| heightoverspindle | 180 mm |
| maxpaddia | 180 mm |
| rechosesize | 13 mm |
| spindlelength | 30 mm |
| spindlethread | 5/8-11 UNC |
| weight | 5.1 lb |
| supporthandleincluded | Yes |
| autobalancer | No |
| modeltype | Vertical |
| motortype | Vane |
| maxfreespeed | 6000 r/min |
| airconsumptionatfreespeed | 7 l/s |
| airconsumptionatmaxoutput | 24 l/s |
| maxworkingpressure | 100 psig |
| soundpower | 87 dB(A) |
| soundpressure | 76 dB(A) |
| soundstandard | ISO15744 |
| sounduncertainty | 3 dB(A) |
| vibrationstandard | ISO28927-3 |
| vibrationvalue | <2.5 m/s² |
| eaccertified | Yes |
| eulegislation | 2006/42/EC |
| eustandard | ISO 11148-8 |
| ukregulations | S.I. 2008/1597 |
| ukstandard | ISO 11148-8 |
| lubricationfree | No |
| maxoutput | 1.2 kW |
| MPN | LSS53 S060 |
