Click the image to zoom
Atlas Copco8423 2530 72

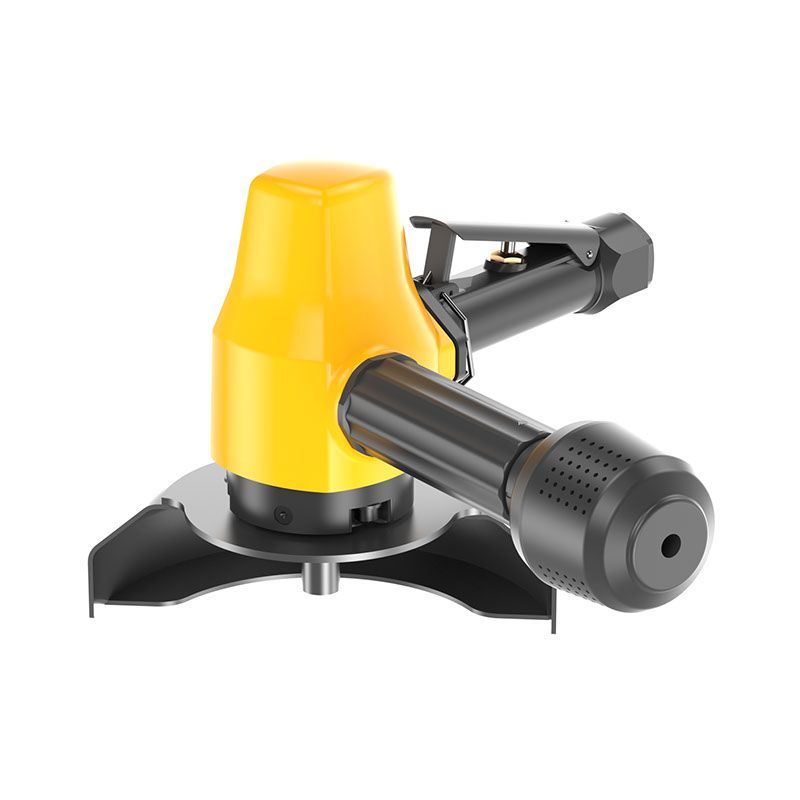

Vertical Grinder, 1.9 hp, 8500 rpm
8423 2530 72 | Atlas Copco Vertical Grinder, 1.9 hp, 8500 rpm
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
8423 2530 72 | Atlas Copco Vertical Grinder, 1.9 hp, 8500 rpm8423 2530 72
Price on request
Details
Product information
Overview
Atlas Copco 8423 2530 72
Atlas Copco Vertical Grinder, 1.9 Hp, 8500 Rpm
Max Ouput (hp): 1.9Free Speed (RPM): 8500
Weight (lbs): 6.4
Max Air Consumption (cfm): 57
Air Inlet (NPT): 1/2
Application: For use in factory processing atmospheres.
| Technical Specifications | |
|---|---|
| airinletthreadbsp | 1/2 in |
| height | 197 mm |
| heightoverspindle | 180 mm |
| length | 285 mm |
| maxwheeldia | 180 mm |
| rechosesize | 13 mm |
| spindlelength | 30 mm |
| spindlethread | 5/8-11 UNC |
| weight | 6.4 lb |
| supporthandleincluded | Yes |
| autobalancer | No |
| modeltype | Vertical |
| motortype | Vane |
| maxfreespeed | 8500 r/min |
| airconsumptionatfreespeed | 10 l/s |
| airconsumptionatmaxoutput | 27 l/s |
| maxworkingpressure | 100 psig |
| soundpressure | 78 dB(A) |
| soundstandard | ISO15744 |
| sounduncertainty | 3 dB(A) |
| vibrationstandard | ISO28927-1 |
| vibrationuncertainty | 1.1 m/s² |
| vibrationvalue | 3.8 m/s² |
| eaccertified | Yes |
| eulegislation | 2006/42/EC |
| eustandard | ISO 11148-7 |
| ukregulations | S.I. 2008/1597 |
| ukstandard | ISO 11148-7 |
| maxoutput | 1.4 kW |
| lubricationfree | No |
| MPN | 8423 2530 72 |
