Atlas Copco8423 2641 04

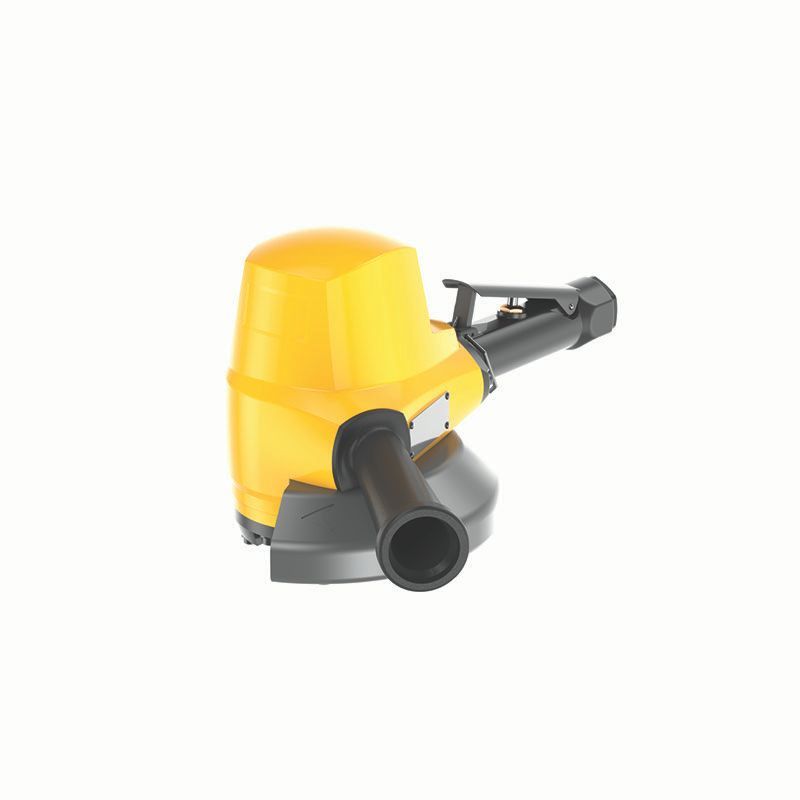

Vertical Grinder, 3 hp, 6000 rpm
8423 2641 04 | Atlas Copco Vertical Grinder, 3 hp, 6000 rpm
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
8423 2641 04 | Atlas Copco Vertical Grinder, 3 hp, 6000 rpm8423 2641 04
Price on request
Details
Product information
Overview
Atlas Copco 8423 2641 04
Atlas Copco Vertical Grinder, 3 Hp, 6000 Rpm
Max Ouput (hp): 3Free Speed (RPM): 6000
Weight (lbs): 11
Max Air Consumption (cfm): 85
Air Inlet (NPT): 1/2
Application: For use in factory processing atmospheres.
| Technical Specifications | |
|---|---|
| airinletthreadbsp | 1/2 in |
| height | 228 mm |
| heightoverspindle | 201 mm |
| length | 380 mm |
| maxwheeldia | 150 mm |
| rechosesize | 16 mm |
| spindlelength | 29 mm |
| spindlethread | 5/8-11 UNC |
| weight | 11 lb |
| supporthandleincluded | Yes |
| autobalancer | No |
| modeltype | Vertical |
| motortype | Vane |
| maxfreespeed | 6000 r/min |
| airconsumptionatfreespeed | 9 l/s |
| airconsumptionatmaxoutput | 40 l/s |
| maxworkingpressure | 100 psig |
| soundpower | 93 dB(A) |
| soundpressure | 82 dB(A) |
| soundstandard | ISO15744 |
| sounduncertainty | 3 dB(A) |
| vibrationstandard | ISO28927-1 |
| vibrationvalue | <2.5 m/s² |
| eaccertified | Yes |
| eulegislation | 2006/42/EC |
| eustandard | EN 792-7 |
| ukregulations | S.I. 2008/1597 |
| ukstandard | EN 792-7 |
| maxoutput | 2.2 kW |
| lubricationfree | No |
| MPN | 8423 2641 04 |
