Atlas Copco8423 2930 00
GTG40 S060 | 140 wheel Diameter turbine grinder, 6.1 hp, 6000 rpm
The Pneumatic Angle Turbine Sander GTG40 sets the standards in the industry. Thanks to its revolutionary one-step turbine motor, the tool gets the job done fast.
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
8423 2930 00 | GTG40 S060 | 140 wheel Diameter turbine grinder, 6.1 hp, 6000 rpmGTG40 S060
Price on request
Details
Product information
Overview

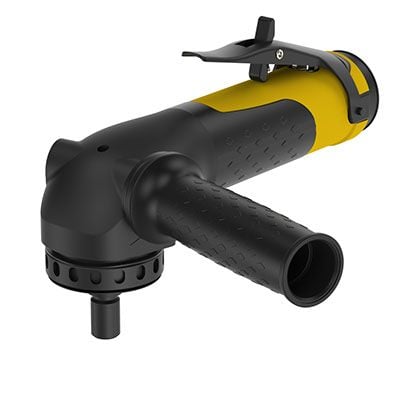

Atlas Copco 8423 2930 00
Gtg40 S060, 140 Wheel Diameter Turbine Grinder, 6.1 Hp, 6000 Rpm
Wheel Diameter: 140Max Ouput (hp): 6.1
Free Speed (RPM): 6000
Weight (lbs): 7.9
Max Air Consumption (cfm): 126
Air Inlet (NPT): 1/2
Application: For use in factory processing atmospheres.
| Technical Specifications | |
|---|---|
| airinletthreadbsp | 1/2 in |
| height | 132 mm |
| heightoverspindle | 122 mm |
| maxwheeldia | 140 mm |
| rechosesize | 16 mm |
| spindlelength | 22.3 mm |
| spindlethread | 5/8-11 UNC |
| weight | 7.9 lb |
| supporthandleincluded | Yes |
| autobalancer | Yes |
| modeltype | Angle |
| motortype | Turbine |
| maxfreespeed | 6000 r/min |
| airconsumptionatfreespeed | 20 l/s |
| airconsumptionatmaxoutput | 60 l/s |
| maxworkingpressure | 90 psig |
| soundpower | 95 dB(A) |
| soundpressure | 84 dB(A) |
| soundstandard | ISO15744 |
| sounduncertainty | 3 dB(A) |
| vibrationstandard | ISO28927-3 |
| vibrationvalue | <2.5 m/s² |
| eaccertified | Yes |
| eulegislation | 2006/42/EC |
| eustandard | ISO 11148-8 |
| ukregulations | S.I. 2008/1597 |
| ukstandard | ISO 11148-8 |
| maxoutput | 4.5 kW |
| lubricationfree | Yes |
| MPN | GTG40 S060 |
| Features & Benefits | |
| Highest material removal rate in its class | |
| Unrivaled power-to-weight ratio | |
| Highly efficient turbine motor | |
| Reduced risk of vibration related injuries | |
